Description:High Brightness Numeric LED Displays : Luminous intensity is enhanced about 2~10 times compared with conventional numerical LED displays by use of 4-element AlGaInP dies.
COMMON ANODE, MULTIPLEXED, 1 DIGIT WITH DECIMAL POINT
Display Height:
8 mm
Forward Current-Max:
0.02 A
Forward Voltage-Max:
2.6 V
JESD-609 Code:
e1
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
650 nm
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
LAP-301VB Frequently Asked Questions (FAQs)
The recommended operating temperature range for LAP-301VB is -40°C to 85°C. However, it's essential to note that the device's performance and reliability may degrade if operated outside the recommended temperature range.
To ensure proper soldering, follow the recommended reflow soldering conditions: peak temperature 260°C, time above 217°C 30s, and time above 240°C 10s. Additionally, use a solder paste with a melting point below 217°C.
The maximum allowable power dissipation for LAP-301VB is 1.5W. Exceeding this limit may cause the device to overheat, leading to reduced performance, reliability issues, or even failure.
While LAP-301VB is designed to operate in a variety of environments, it's essential to take precautions when using it in high-humidity environments. Ensure the device is properly sealed, and consider using moisture-resistant coatings or conformal coatings to prevent moisture ingress.
Store LAP-301VB in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, and the relative humidity should be below 60%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LAP-301VB Overview

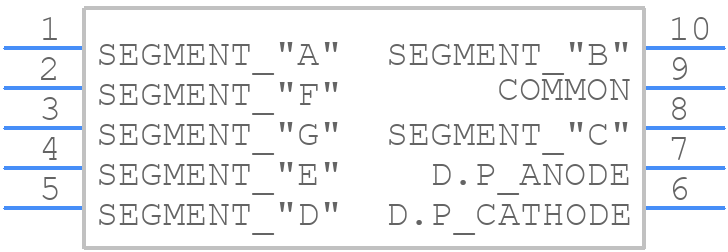

Use the download button to access the LAP-301VB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LAP-3,
or try a keyword search, such as LED Displays
