LAP-601VB - ROHM Semiconductor

Description: LED Displays & Accessories HIGH BRIGHTNESS LED DISPLAYS

Download LAP-601VB Model
Schematic
symbols

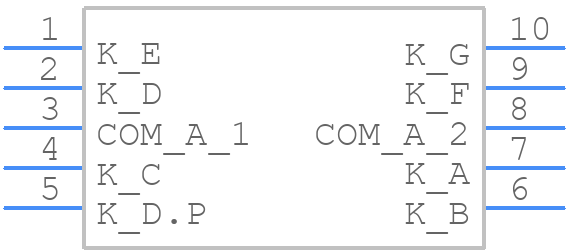

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LAP-601VB - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)
click to zoom

LAP-601VB Details

  • Manufacturer Part Number:

    LAP-601VB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.6 mm

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)
