LB-302VP/KM - ROHM Semiconductor

Description: Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 10-DIP (0.400", 10.16mm)

Download LB-302VP/KM Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LB-302VP/KM model

Email notifications will be applied after download.

Send part feedback

Symbol

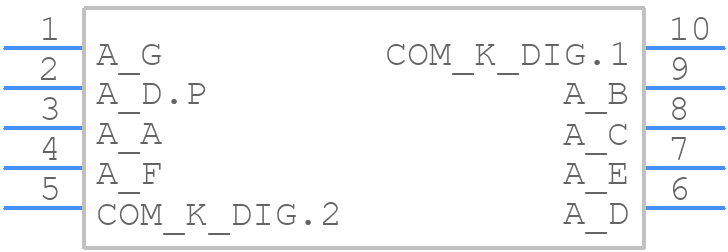

LB-302VP/KM - ROHM Semiconductor - PCB symbol

PCB Footprints

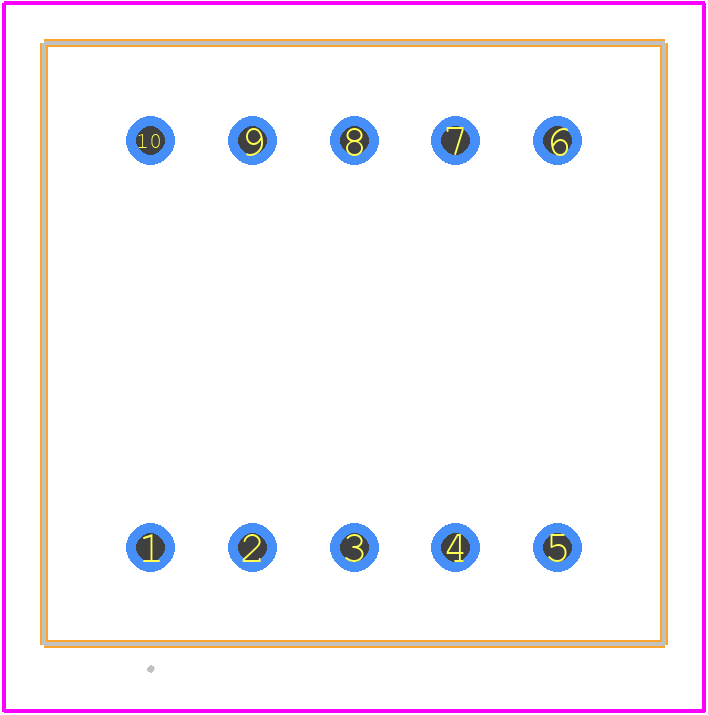

LB-302VP/KM - ROHM Semiconductor PCB footprint - Other - Other - LB-302VP/KM-2

3D Models

LB-302VP/KM - ROHM Semiconductor - 3D model - Other - LB-302VP/KM-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for LB-302VP/KM
Part Number LB-302VP/KM
Manufacturer ROHM Semiconductor
Pin Count 10
Part Category Display
Package Category Other
Footprint Name Other - LB-302VP/KM-2
Released Date Aug 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LB-302VP/KM Details

Manufacturer Part Number:
LB-302VP/KM
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
HTS Code:
8541.40.20.00
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Color:
RED
Configuration:
COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display Height:
7.62 mm
JESD-609 Code:
e1
Number of Functions:
2
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)

Trust Checks

Expert Contribution

System Verified

Community Approved

LB-302VP/KM Overview

Use the download button to access the LB-302VP/KM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LB-30, or try a keyword search, such as LED Displays
