ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. The input and output pins should be placed on the top layer, and the decoupling capacitors should be placed as close as possible to the device.
To ensure the LB-402MD operates within its SOA, monitor the device's junction temperature (Tj) and ensure it does not exceed 150°C. Also, keep the input voltage within the recommended range (12V to 24V), and avoid exceeding the maximum output current (2A).
ROHM recommends using a 10uF to 22uF ceramic capacitor (X5R or X7R type) with a voltage rating of 25V or higher as the input capacitor. This helps to filter out noise and ensure stable operation.
While the LB-402MD can operate up to 125°C, its performance and reliability may degrade at high temperatures. If your application requires operation above 85°C, consider using a heat sink or a thermal management system to keep the device within its recommended operating temperature range.
To troubleshoot issues with the LB-402MD, check the input voltage, output current, and PCB layout for any errors or inconsistencies. Verify that the device is properly soldered and that the input and output capacitors are correctly placed. If the issue persists, consult ROHM's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LB-402MD Overview

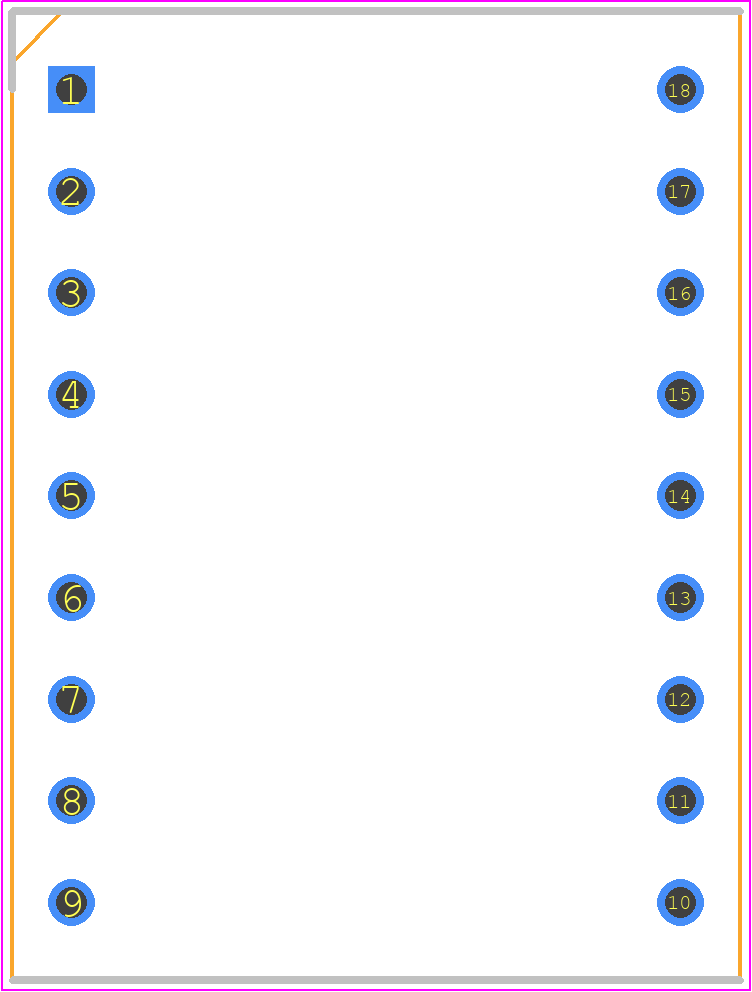

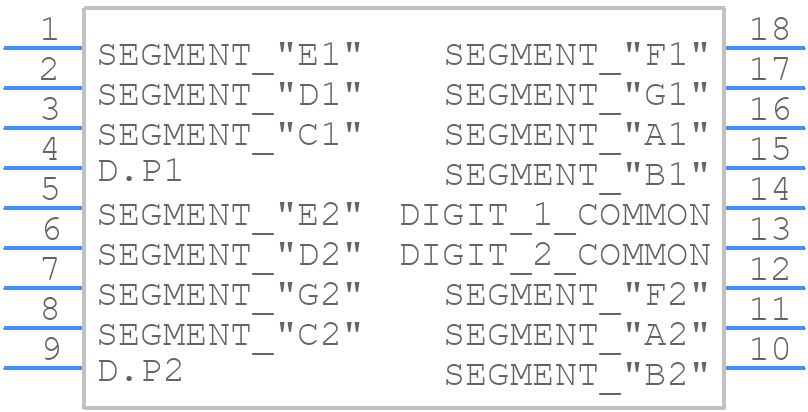

Use the download button to access the LB-402MD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LB-40,
or try a keyword search, such as LED Displays
