LB-602AA2 - ROHM Semiconductor

Description: Two Digit LED Numeric Displays Red

Download LB-602AA2 Model

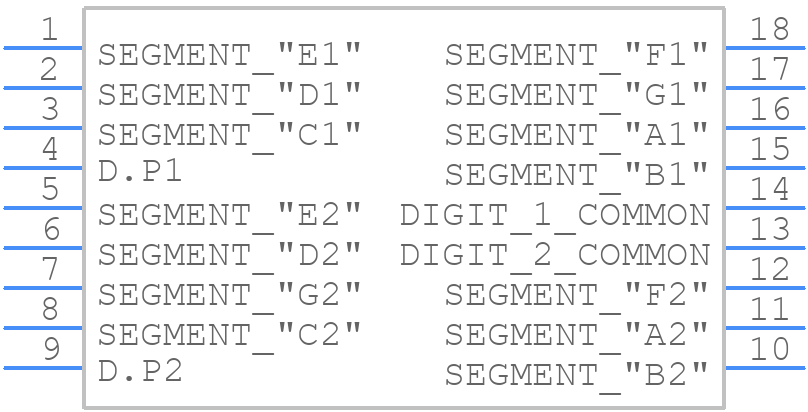

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

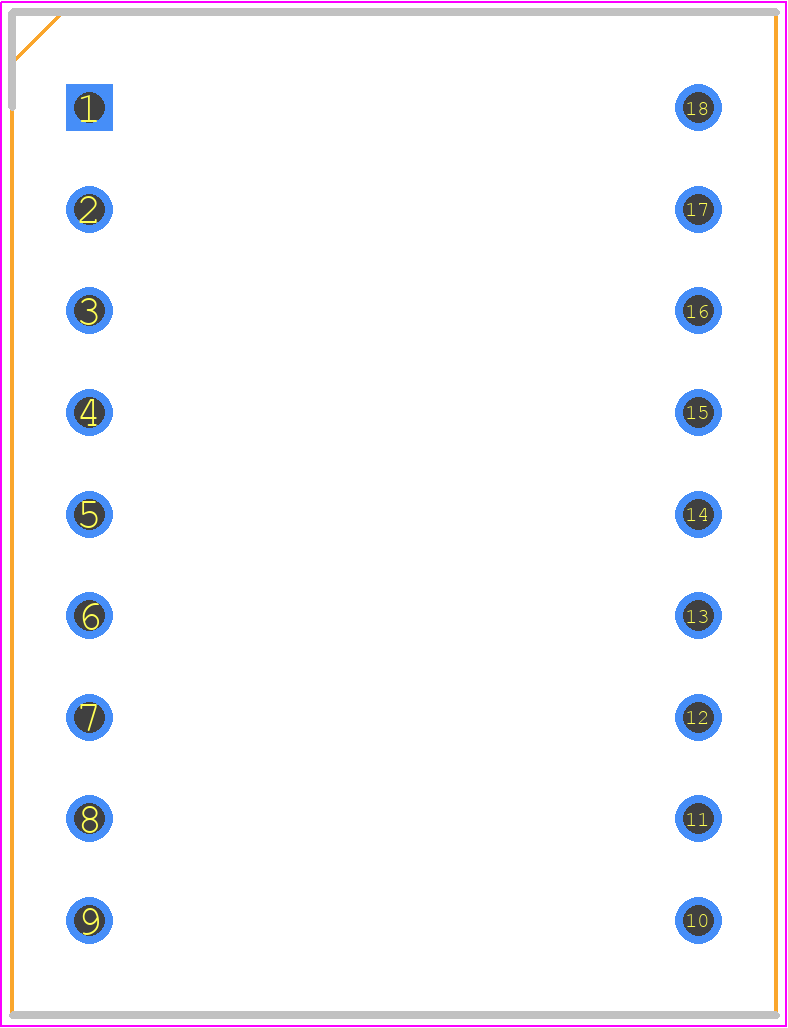

PCB Footprints
LB-602AA2 - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LB-602AA2
click to zoom
3D Models
LB-602AA2 - ROHM Semiconductor  - 3D model - Dual-In-Line Sockets - LB-602AA2
click to zoom

LB-602AA2 Details

  • Manufacturer Part Number:

    LB-602AA2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    25 X 19 MM, 8 MM HEIGHT, PLASTIC PACKAGE-18

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    HIGH BRIGHT RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.3 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    626 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)
