LB-602VK2 - ROHM Semiconductor

Description: Red 7-segment LED, LA-602VK2 14.6mm ROHM LB-602VK2 2 Digit 7-Segment LED Display, CC Red 16 mcd RH DP 14.3mm

Download LB-602VK2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LB-602VK2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

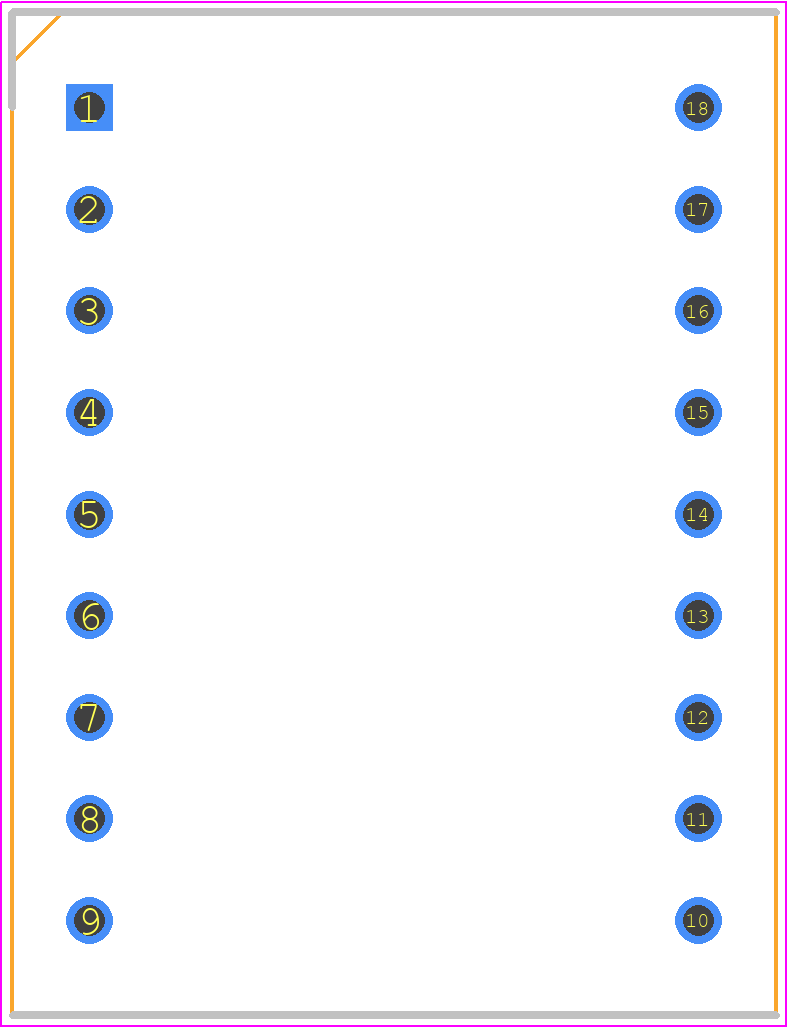

LB-602VK2 - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LB-602VK2
click to zoom

LB-602VK2 Details

  • Manufacturer Part Number:

    LB-602VK2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    25 X 19 MM, 8 MM HEIGHT, PLASTIC PACKAGE-18

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.3 mm

  • Forward Current-Max:

    0.02 A

  • JESD-609 Code:

    e1

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

LB-602VK2 Frequently Asked Questions (FAQs)

  • ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and GND pins. Additionally, keep the input and output traces short and away from noise sources.
  • Use a thermal pad or a heat sink to dissipate heat, and ensure good airflow around the device. Also, follow the recommended operating conditions and derating guidelines in the datasheet.
  • The maximum allowable voltage on the input pins is VCC + 0.5V. Exceeding this voltage may cause damage to the device.
  • Yes, but take precautions to prevent moisture ingress. Use a conformal coating or a moisture-resistant package, and ensure the device is stored in a dry environment before use.
  • Use a logic analyzer or an oscilloscope to monitor the input and output signals. Check for proper power supply, correct pin connections, and ensure the device is operated within the recommended conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LB-602VK2 Overview

Use the download button to access the LB-602VK2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LB-60, or try a keyword search, such as LED Displays
