A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the IC and to connect it to a heat sink or a thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper PCB design guidelines for thermal management.
The recommended input capacitors are ceramic capacitors with a value of 10uF to 22uF, and the recommended output capacitors are ceramic or electrolytic capacitors with a value of 10uF to 47uF. The capacitor selection should be based on the specific application requirements and the desired output voltage ripple.
To troubleshoot issues with the device not turning on or not regulating the output voltage, check the input voltage, ensure proper connections, and verify that the enable pin is properly biased. Also, check for any short circuits or overload conditions, and ensure that the output capacitor is properly selected and connected.
The maximum allowed input voltage ripple for the LB11600JV-TLM-E is typically around 1% to 2% of the input voltage. Exceeding this limit may affect the device's performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LB11600JV-TLM-E Overview

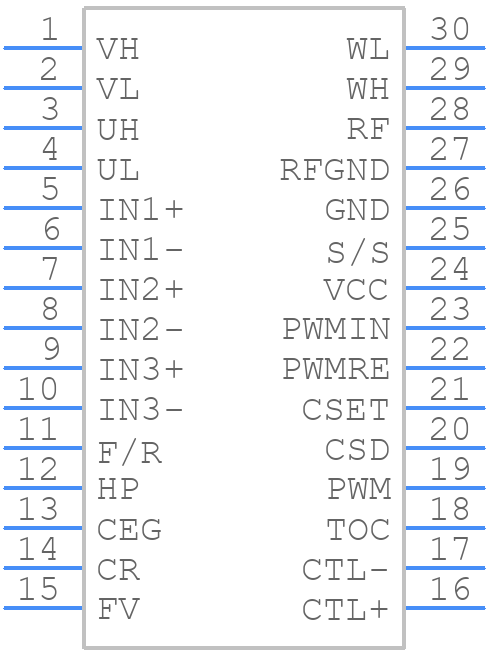

Use the download button to access the LB11600JV-TLM-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LB116,
or try a keyword search, such as Motion Control Electronics
