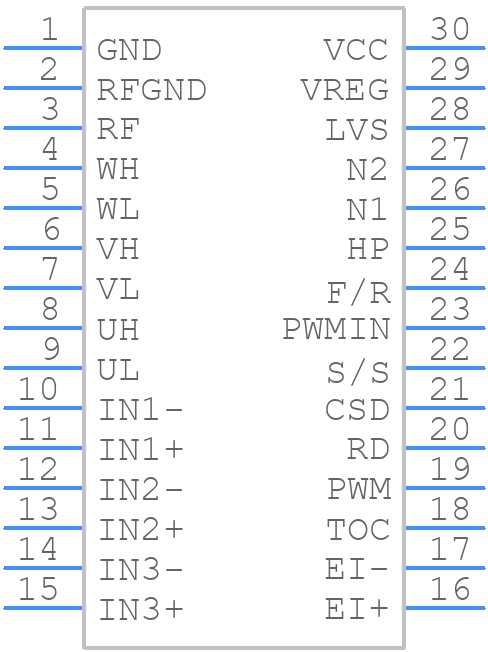

LB11696V-TLM-E - onsemi

LB11696V-TLM-E Details

• Manufacturer Part Number:

  LB11696V-TLM-E

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SSOP-30

• Pin Count:

  30

• Manufacturer Package Code:

  565AT

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Analog IC - Other Type:

  1-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G30

• JESD-609 Code:

  e6

• Length:

  9.75 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  30

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -20 °C

• Output Current-Max:

  0.03 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  SSOP30,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.5 mm

• Supply Current-Max (Isup):

  16 mA

• Supply Voltage-Max (Vsup):

  17 V

• Supply Voltage-Min (Vsup):

  8 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Bismuth (Sn/Bi)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.6 mm
