A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad.
To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper PCB design guidelines.
The recommended soldering conditions for the LB11696V-TRM-E are: peak temperature of 260°C, soldering time of 10 seconds or less, and a soldering iron temperature of 350°C or less.
To handle ESD protection during handling and assembly, use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the pins or die, and store the device in an ESD-protective package.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to follow the recommended operating conditions to ensure reliable operation and extend the device's lifespan.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LB11696V-TRM-E Overview

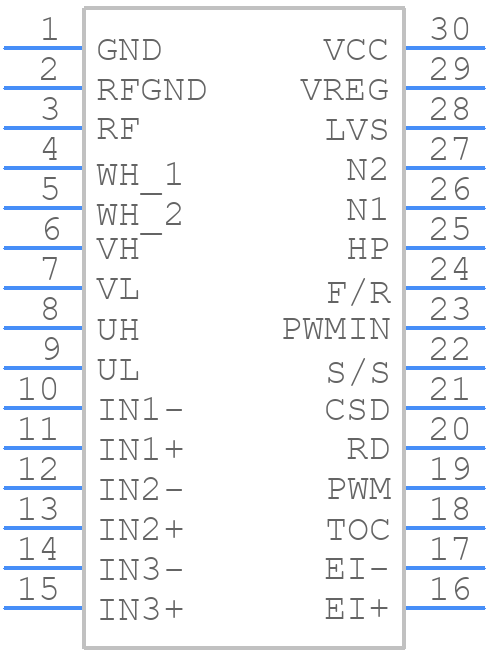

Use the download button to access the LB11696V-TRM-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LB116,
or try a keyword search, such as Motion Control Electronics
