LB11880 - Sanyo

LB11880 Details

• Manufacturer Part Number:

  LB11880

• Part Life Cycle Code:

  Obsolete

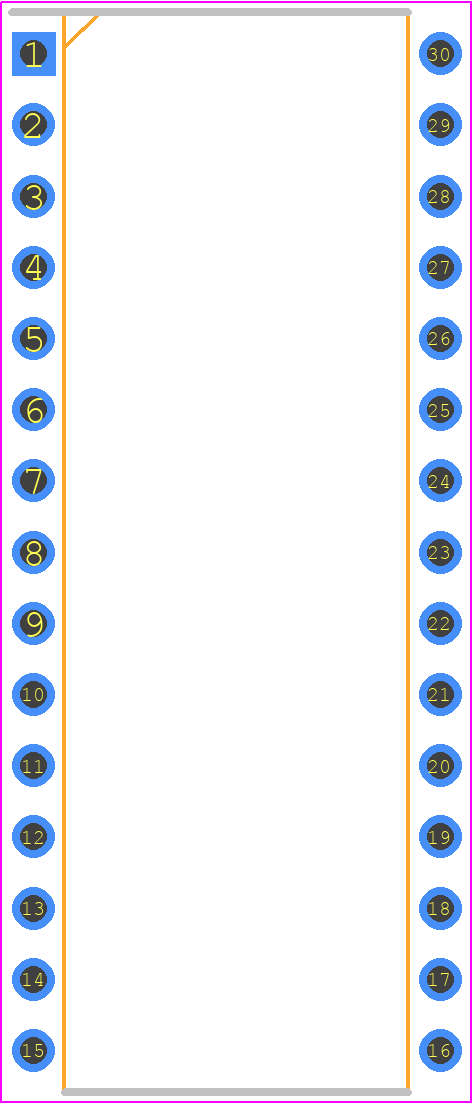

• Package Description:

  0.400 INCH, DIP-30

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  SANYO Semiconductor Co Ltd

• YTEOL:

  0

• Additional Feature:

  OUTPUT POWER SUPPLY IS 4 TO 6V

• Analog IC - Other Type:

  DISK DRIVE MOTOR CONTROLLER

• JESD-30 Code:

  R-PDIP-T30

• Length:

  27 mm

• Number of Functions:

  1

• Number of Terminals:

  30

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Output Current-Max:

  1.2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  SDIP30,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  3.95 mm

• Supply Voltage-Max (Vsup):

  13.8 V

• Supply Voltage-Min (Vsup):

  8 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  NO

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.78 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm
