A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the IC to dissipate heat effectively.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to decouple the input voltage with a capacitor. Additionally, the output voltage should be filtered with a capacitor and a resistor to reduce noise and ripple.
Although the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at high ambient temperatures (above 85°C) to ensure reliable operation and prevent thermal shutdown.
While the LB1939T-TLM-E can handle high currents, it's essential to consider the thermal limitations and ensure that the device is properly heat-sinked. The maximum current handling capability will depend on the specific application and PCB design.
To protect the device from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a voltage monitor IC to detect and respond to abnormal voltage conditions. Additionally, a TVS diode can be used to protect the input from voltage transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LB1939T-TLM-E Overview

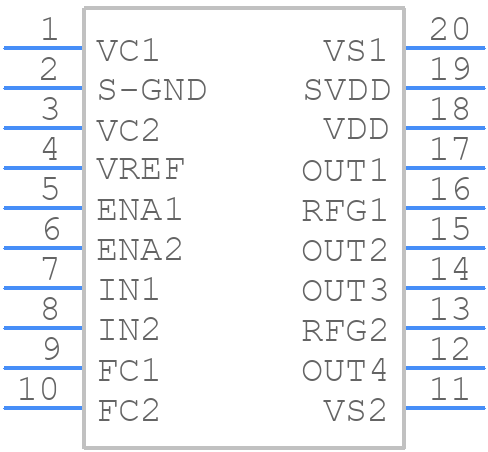

Use the download button to access the LB1939T-TLM-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LB193,
or try a keyword search, such as Motion Control Electronics
