LBAA0QB1SJ-295 - Murata Electronics

Description: General ISM < 1GHz LoRa™, LoRaWAN Transceiver Module 868MHz, 915MHz PCB Trace Surface Mount

Download LBAA0QB1SJ-295 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LBAA0QB1SJ-295 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

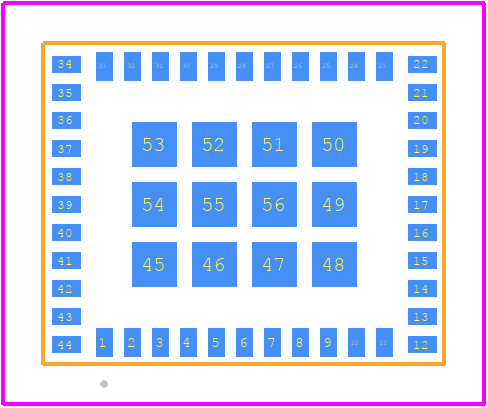

LBAA0QB1SJ-295 - Murata Electronics PCB footprint - Other - Other - 10mm x 8mm x 1.6mm
click to zoom
3D Models
LBAA0QB1SJ-295 - Murata Electronics - 3D model - Other - 10mm x 8mm x 1.6mm
click to zoom

LBAA0QB1SJ-295 Details

  • Manufacturer Part Number:

    LBAA0QB1SJ-295

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    250

  • Time@Peak Reflow Temperature-Max (s):

    10

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LBAA0QB1SJ-295 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LBAA0QB1SJ-295 is -40°C to +85°C.
  • To configure the LBAA0QB1SJ-295 for optimal performance, ensure that the module is properly soldered to the PCB, and that the antenna is properly connected and matched to the module's impedance.
  • The maximum transmit power of the LBAA0QB1SJ-295 is +20 dBm.
  • The LBAA0QB1SJ-295 module is certified for use in various regions, including the US (FCC), Europe (CE), and Japan (TELEC). Check the module's certification status for your specific region.
  • To troubleshoot connectivity issues with the LBAA0QB1SJ-295, check the module's power supply, antenna connection, and firmware version. Also, ensure that the module is properly configured and paired with the correct device.
