LBEE5HY1MW-TEMP - Murata Electronics

Description: Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v4.2 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount

Download LBEE5HY1MW-TEMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LBEE5HY1MW-TEMP - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

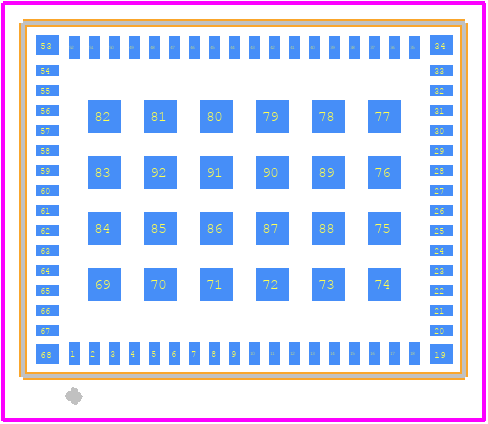

LBEE5HY1MW-TEMP - Murata Electronics PCB footprint - Other - Other - LBEE5HY1MW-TEMP-2
click to zoom
3D Models
LBEE5HY1MW-TEMP - Murata Electronics - 3D model - Other - LBEE5HY1MW-TEMP-2
click to zoom

LBEE5HY1MW-TEMP Details

  • Manufacturer Part Number:

    LBEE5HY1MW-TEMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    PACKAGE-72

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    3

  • Data Rate:

    390000 Mbps

  • JESD-30 Code:

    R-XXMA-N72

  • Length:

    7.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Packing Method:

    TR

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    7.3 mm

LBEE5HY1MW-TEMP Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LBEE5HY1MW-TEMP can be found in the Murata Manufacturing Co Ltd's application note or the datasheet's appendix. It typically includes a rectangular pad with a size of 2.5mm x 1.6mm and a 0.5mm keep-out area around the component.
  • To handle thermal considerations, ensure a good thermal connection between the component and the PCB. Use a thermal pad or a thermal via to dissipate heat. Also, consider the PCB material, thickness, and layout to minimize thermal resistance.
  • The recommended reflow profile for the LBEE5HY1MW-TEMP is a standard Pb-free reflow profile with a peak temperature of 260°C and a time above 220°C of 20-40 seconds. However, it's recommended to consult the datasheet or application note for specific guidance.
  • The LBEE5HY1MW-TEMP is designed to withstand moderate vibration. However, for high-vibration environments, it's recommended to consult with Murata's application engineers to determine the suitability of the component and to discuss potential customizations or additional testing.
  • To ensure the LBEE5HY1MW-TEMP meets your specific temperature requirements, consult the datasheet for the component's temperature range and tolerance. If your requirements are outside the specified range, consult with Murata's application engineers to discuss customizations or alternative components.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LBEE5HY1MW-TEMP Overview

Use the download button to access the LBEE5HY1MW-TEMP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LBEE5, or try a keyword search, such as Other Telecom ICs

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
