Part Image

LBEE5KL1YN-814 - Murata Electronics

Description: Bluetooth 802.11b/g/n, Bluetooth v5.2 Transceiver Module 2.4GHz ~ 2.4835GHz Antenna Not Included Surface Mount

Download LBEE5KL1YN-814 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

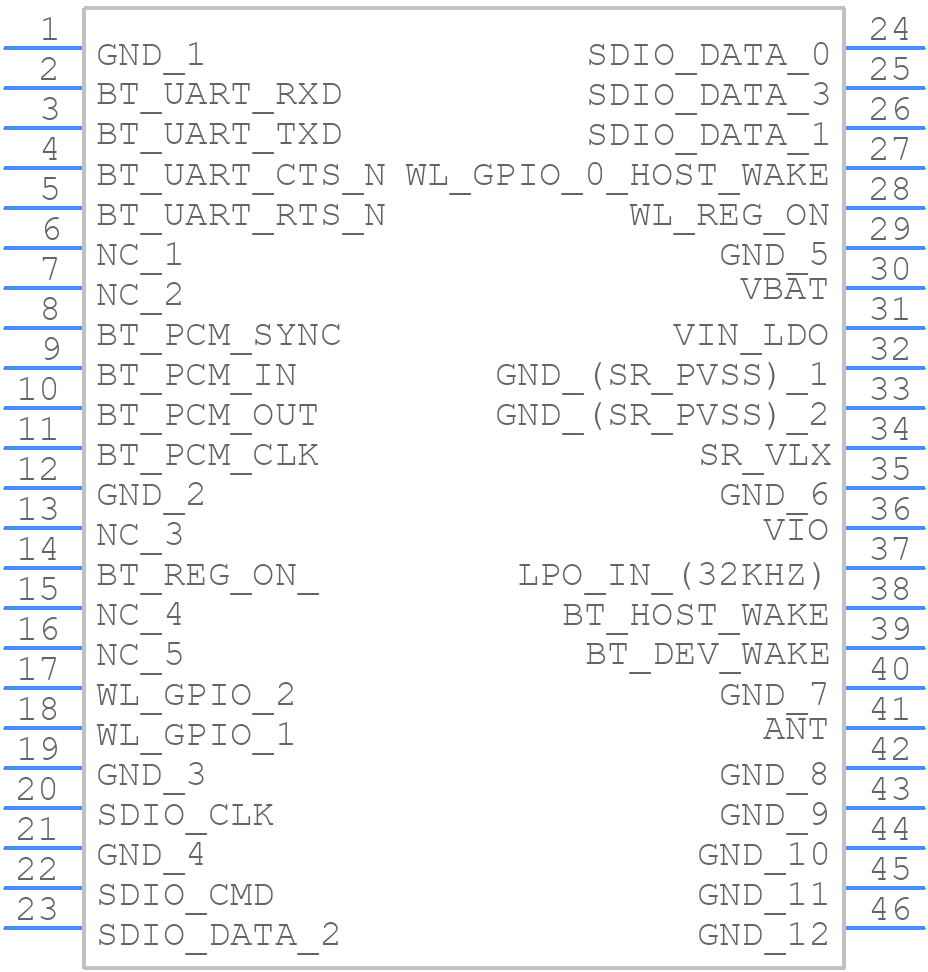

Symbol
LBEE5KL1YN-814 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LBEE5KL1YN-814 - Murata Electronics PCB footprint - Other - Other - LBEE5KL1YN-814-3
click to zoom
3D Models
LBEE5KL1YN-814 - Murata Electronics - 3D model - Other - LBEE5KL1YN-814-3
click to zoom

LBEE5KL1YN-814 Details

  • Manufacturer Part Number:

    LBEE5KL1YN-814

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • JESD-30 Code:

    R-XXMA-N46

  • Length:

    6.95 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    46

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    4.8 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    5.15 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LBEE5KL1YN-814 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LBEE5KL1YN-814 is a rectangular pad with a size of 2.5mm x 1.6mm, with a solder mask clearance of 0.2mm.
  • The LBEE5KL1YN-814 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and equivalent series inductance (ESL).
  • Yes, the LBEE5KL1YN-814 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The LBEE5KL1YN-814 can operate safely in temperatures ranging from -55°C to 125°C, making it suitable for a wide range of applications.
  • The LBEE5KL1YN-814 follows the standard voltage derating curve, with a maximum operating voltage of 50V at 125°C, and a linear derating to 25V at 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LBEE5KL1YN-814 Overview

Use the download button to access the LBEE5KL1YN-814 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LBEE5, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
