ROHM provides a recommended PCB layout in the application note (AN1911) for the LBP-602DK2, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The input capacitor selection depends on the input voltage, output voltage, and output current. ROHM recommends using a low-ESR capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the input voltage. The application note (AN1911) provides more detailed guidance on capacitor selection.
The maximum ambient temperature for the LBP-602DK2 is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure proper thermal management and heat dissipation to maintain the device's reliability and performance.
Yes, the LBP-602DK2 is designed to withstand vibrations up to 10G (10Hz to 2kHz) and can be used in high-vibration environments. However, it's crucial to ensure proper PCB mounting and mechanical design to prevent damage or malfunction.
ROHM provides a troubleshooting guide in the application note (AN1911) that covers common issues, such as output voltage deviation, oscillation, and overheating. It's essential to follow the guide and consult with ROHM's technical support team if the issue persists.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LBP-602DK2 Overview

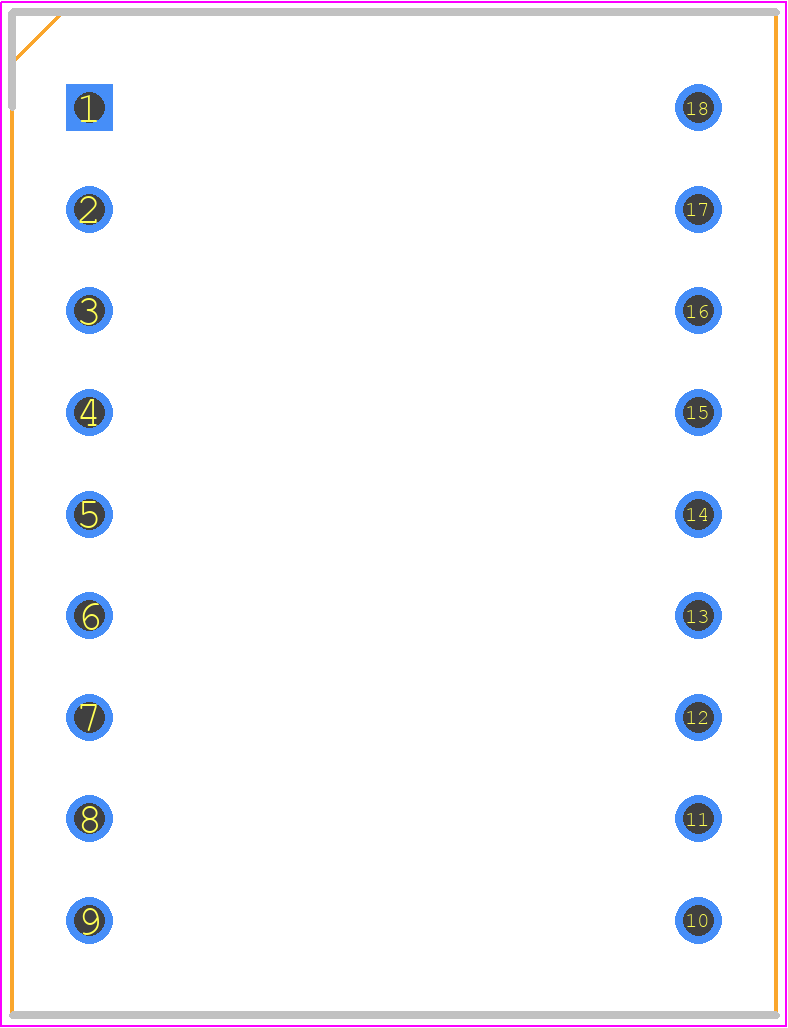

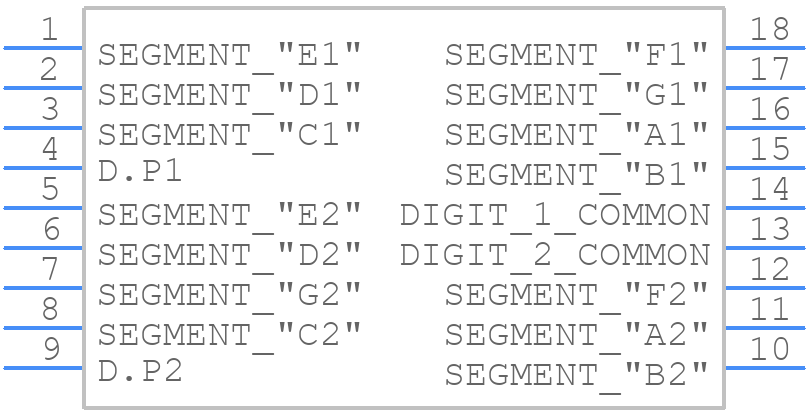

Use the download button to access the LBP-602DK2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LBP-6,
or try a keyword search, such as LED Displays
