LBP-602MA2 footprint, schematic symbol and 3D model by ROHM Semiconductor

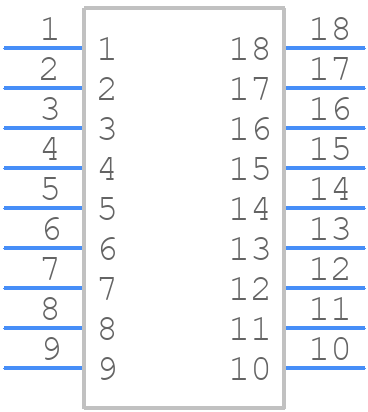

Symbol

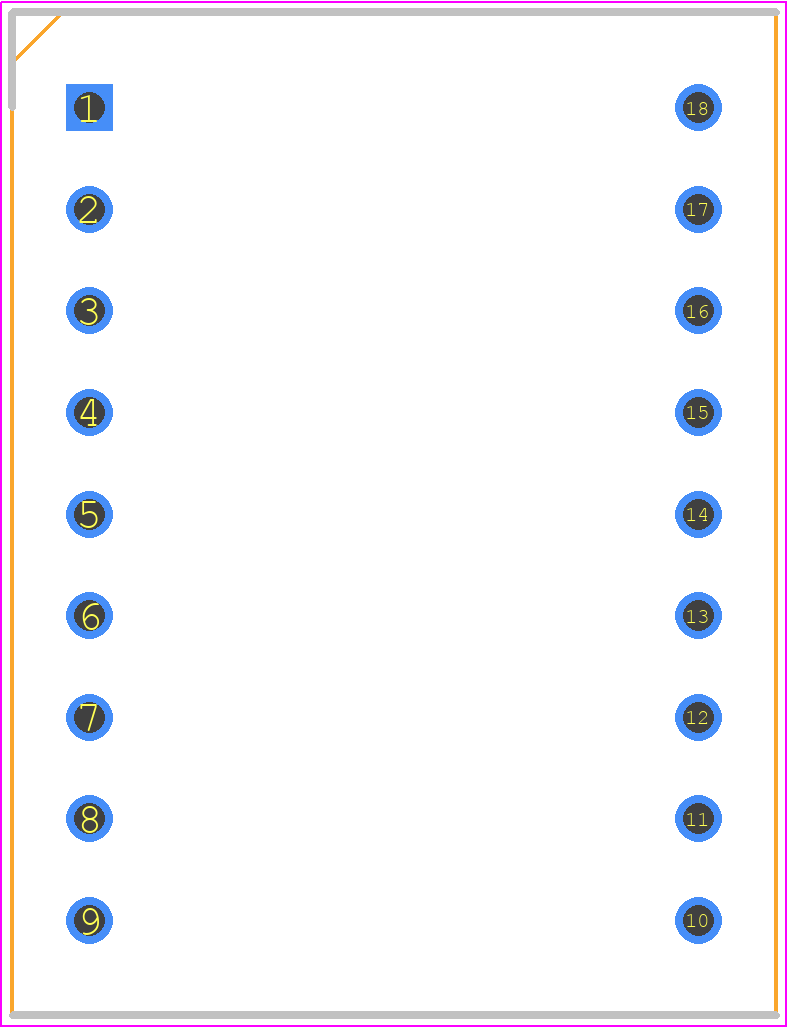

PCB Footprints

LBP-602MA2 Details

ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the LBP-602MA2. The device should be placed near the center of the board, and the input and output pins should be routed away from each other to minimize noise coupling.
The LBP-602MA2 requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA ± 10% on the IBIAS pin. Ensure that the bias voltage and current are stable and within the recommended range for optimal performance.
The LBP-602MA2 is rated for operation from -40°C to +125°C, but the recommended operating temperature range is -20°C to +85°C for optimal performance and reliability.
The LBP-602MA2 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
The recommended soldering temperature is 260°C ± 5°C, and the recommended soldering time is 3 seconds ± 1 second. Ensure that the soldering iron is properly calibrated and that the device is not exposed to excessive heat or moisture.

Community Provided

System Verified

Community Approved

Use the download button to access the LBP-602MA2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LBP-6, or try a keyword search, such as LED Displays
