LBP-602MK2 footprint, schematic symbol and 3D model by ROHM Semiconductor

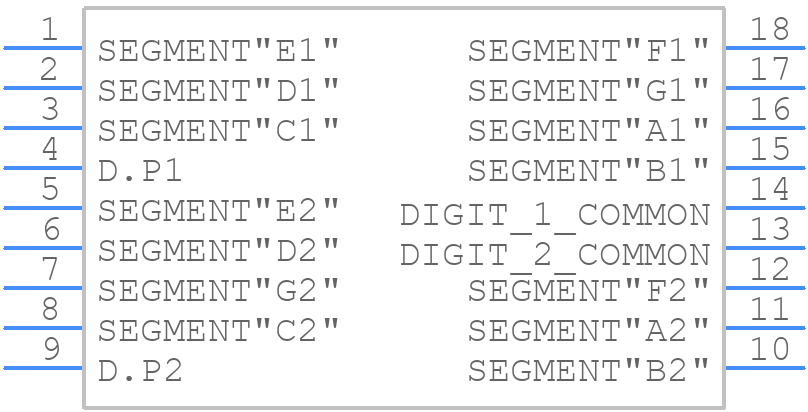

Symbol

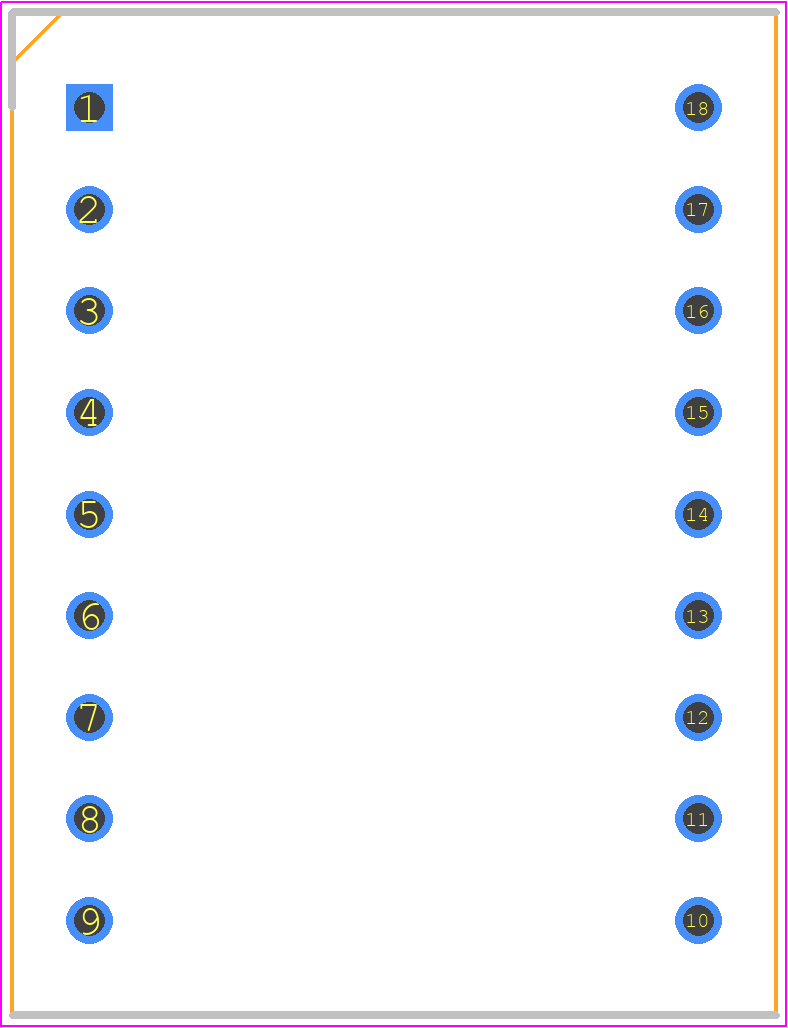

PCB Footprints

LBP-602MK2 Details

ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the LBP-602MK2. The device should be placed near the center of the board, and the input and output pins should be routed away from each other to minimize noise coupling.
To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or higher at the output pin, and to keep the output voltage within the specified range (1.8V to 3.3V). Additionally, the input voltage should be stable and within the specified range (2.7V to 5.5V).
The maximum current that LBP-602MK2 can supply is 500mA. However, it is recommended to keep the output current below 300mA to ensure stable operation and to prevent overheating.
To protect LBP-602MK2 from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC that can detect voltage faults and reset the device. Additionally, a TVS diode can be used to protect the device from voltage surges and spikes.
The thermal resistance of LBP-602MK2 is 125°C/W (junction to ambient) and 25°C/W (junction to case). It is recommended to use a heat sink or a thermal pad to improve heat dissipation and to keep the junction temperature below 125°C.

Community Provided

System Verified

Community Approved

Use the download button to access the LBP-602MK2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LBP-6, or try a keyword search, such as LED Displays
