Part Image

LBP-602VA2 - ROHM Semiconductor

Description: Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 1.9V 10mA 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)

Download LBP-602VA2 Model

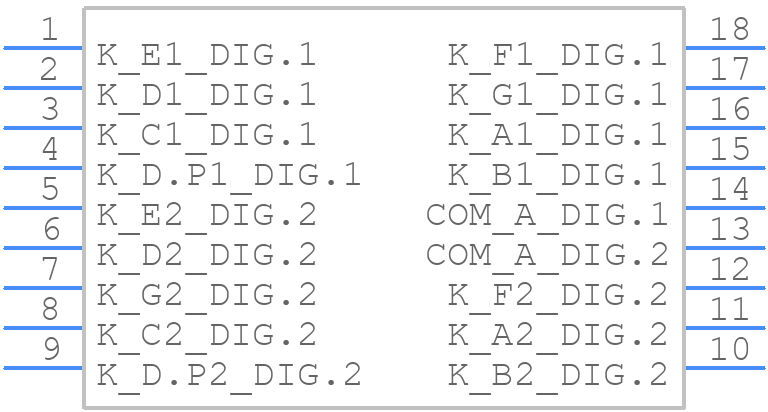

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

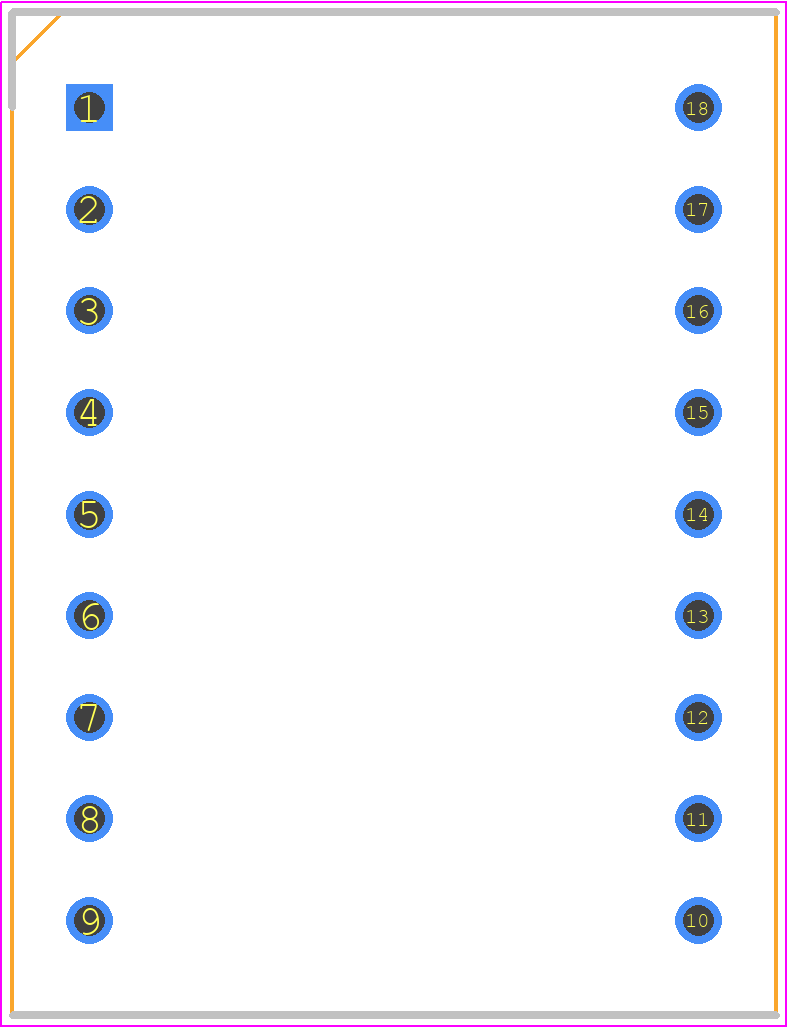

PCB Footprints
LBP-602VA2 - ROHM Semiconductor PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 18-DIP
click to zoom

LBP-602VA2 Details

  • Manufacturer Part Number:

    LBP-602VA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.3 mm

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

LBP-602VA2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and EMI.
  • Monitor the input voltage, output current, and junction temperature to ensure they are within the specified limits. Use thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature below 125°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ripple.
  • Use an oscilloscope to monitor the input and output waveforms, and check for signs of oscillation or ringing. Verify that the input voltage and output current are within the specified limits. Check for thermal issues by monitoring the junction temperature and ensuring proper heat sinking.
  • Yes, the LBP-602VA2 is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to ensure compliance with specific industry standards and regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LBP-602VA2 Overview

Use the download button to access the LBP-602VA2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LBP-6, or try a keyword search, such as LED Displays
