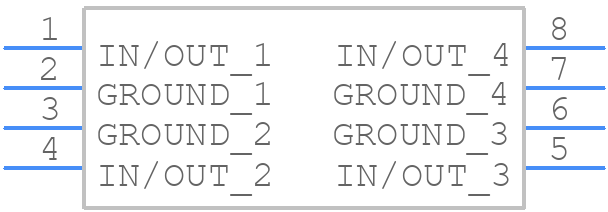

LC03-6.TBT - SEMTECH

LC03-6.TBT Details

• Manufacturer Part Number:

  LC03-6.TBT

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, SOP-8

• Pin Count:

  8

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Semtech Corporation

• YTEOL:

  7.61

• Additional Feature:

  HIGH RELIABILITY

• Breakdown Voltage-Min:

  6.8 V

• Clamping Voltage-Max:

  20 V

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JEDEC-95 Code:

  MS-012AA

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  2000 W

• Number of Elements:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  6 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
