A good PCB layout for the LC04-12 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 50-ohm microstrip line to match the impedance of the device.
The choice of antenna depends on the frequency band, operating environment, and size constraints of your design. A quarter-wavelength monopole antenna or a chip antenna are good options for the LC04-12. It's also important to consider the antenna's impedance and ensure it's matched to the device's output impedance.
The maximum transmit power of the LC04-12 is dependent on the supply voltage and the load impedance. According to the datasheet, the device can deliver up to +20 dBm (100 mW) of output power with a 3.3V supply voltage and a 50-ohm load impedance.
The LC04-12 does not have built-in frequency hopping capabilities, but it can be implemented using an external microcontroller or FPGA. The microcontroller can control the device's frequency synthesizer to hop between different frequencies in a predetermined sequence.
The typical current consumption of the LC04-12 in transmit mode is around 45 mA at +20 dBm output power, and around 15 mA in receive mode. However, these values can vary depending on the supply voltage, operating frequency, and other factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC04-12 Overview

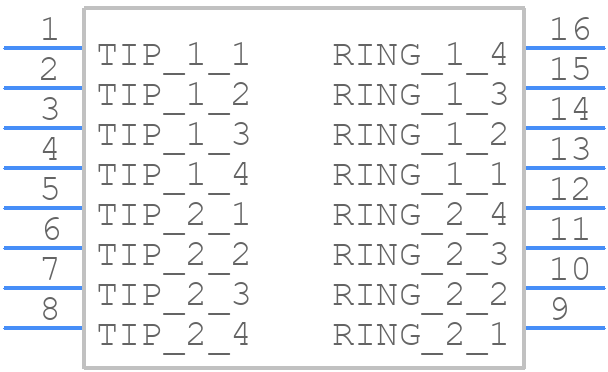

Use the download button to access the LC04-12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LC04-,
or try a keyword search, such as Transient Suppressors
