The recommended power-up sequence is to apply VCCIO first, followed by VCC, and then VREF. This ensures that the internal voltage regulators are powered up correctly and reduces the risk of latch-up or damage to the device.
To implement a reliable JTAG chain, ensure that each device has a unique TDI/TDO pin connection, and use a JTAG cable with a 1-kΩ pull-up resistor on the TMS line. Also, use a JTAG clock frequency of 10 MHz or less to prevent signal degradation.
The maximum operating frequency of the LC4064V-75T48E is 75 MHz, but this can vary depending on the specific application, operating conditions, and device utilization. It's recommended to consult the datasheet and perform timing analysis to determine the maximum frequency for a specific design.
To optimize the LC4064V-75T48E for low power consumption, use the lowest possible voltage supply, reduce the clock frequency, and minimize the number of active resources. Additionally, use the device's built-in power management features, such as the sleep mode, to reduce power consumption during idle periods.
The recommended PCB layout and routing for the LC4064V-75T48E involves using a 4-layer board with a solid ground plane, placing decoupling capacitors close to the device, and using controlled impedance traces for clock and data signals. It's also recommended to follow the datasheet's guidelines for pin placement and routing to minimize signal degradation and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4064V-75T48E Overview

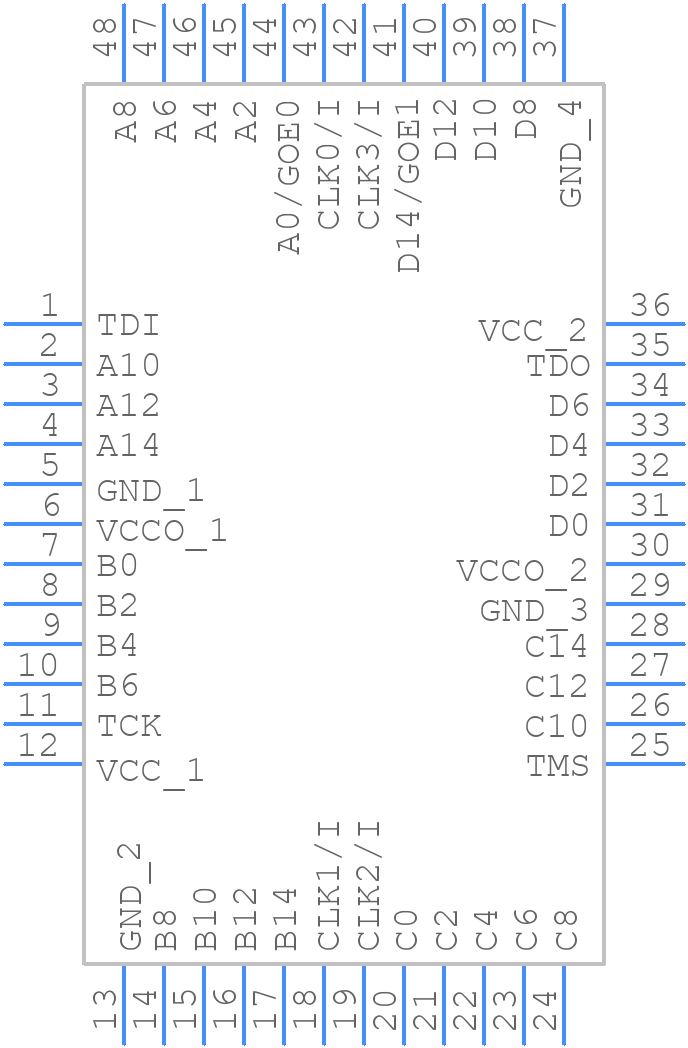

Use the download button to access the LC4064V-75T48E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC406,
or try a keyword search, such as Programmable Logic Devices
