LC4384V-5FTN256C - Lattice Semiconductor

Description: CPLD - Complex Programmable Logic Devices ispJTAG 3.3V 5ns 384MC 192 I/O

Download LC4384V-5FTN256C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LC4384V-5FTN256C - Lattice Semiconductor - PCB symbol
click to zoom
PCB Footprints

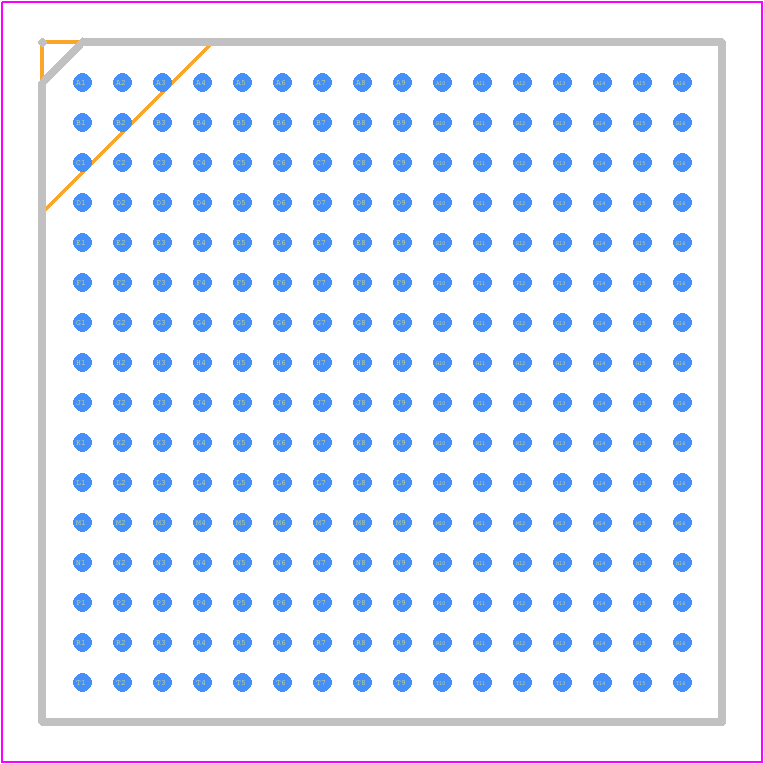

LC4384V-5FTN256C - Lattice Semiconductor PCB footprint - BGA - BGA - 256-Ball ftBGA Package Option 1: ispMACH 4000, MachXO, LatticeXP2
click to zoom
3D Models
LC4384V-5FTN256C - Lattice Semiconductor - 3D model - BGA - 256-Ball ftBGA Package Option 1: ispMACH 4000, MachXO, LatticeXP2
click to zoom

LC4384V-5FTN256C Details

  • Manufacturer Part Number:

    LC4384V-5FTN256C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    FTBGA-256

  • Pin Count:

    256

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    10

  • Architecture:

    PAD-TYPE

  • Clock Frequency-Max:

    156 MHz

  • In-System Programmable:

    YES

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • JTAG BST:

    YES

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Dedicated Inputs:

    4

  • Number of I/O Lines:

    192

  • Number of Inputs:

    196

  • Number of Macro Cells:

    384

  • Number of Outputs:

    192

  • Number of Product Terms:

    83

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    90 °C

  • Organization:

    4 DEDICATED INPUTS, 192 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    17 mm

LC4384V-5FTN256C Frequently Asked Questions (FAQs)

  • Lattice Semiconductor provides a PCB layout guide and reference design files for the LC4384V-5FTN256C, which can be found on their website. It's recommended to follow these guidelines to ensure optimal performance and minimize signal integrity issues.
  • The LC4384V-5FTN256C has a built-in POR and BOD circuitry. To implement POR, connect the POR pin to a capacitor and a resistor to create a delay circuit. For BOD, connect the BOD pin to a voltage divider circuit to set the brown-out detection threshold. Refer to the datasheet for specific implementation details.
  • The LC4384V-5FTN256C is rated for industrial temperature range, which is -40°C to 100°C. However, it's recommended to derate the device's performance and power consumption at higher temperatures to ensure reliability and longevity.
  • The LC4384V-5FTN256C has a programmable PLL that can be configured using the Lattice Diamond software or through the device's configuration registers. Refer to the datasheet and user manual for specific configuration options and settings.
  • Lattice Semiconductor recommends using a combination of high-frequency and low-frequency decoupling capacitors, with values ranging from 10nF to 10uF, placed close to the device's power pins. Refer to the datasheet for specific decoupling capacitor recommendations and placement guidelines.
