LC709203FQH-01TWG footprint, schematic symbol and 3D model by onsemi

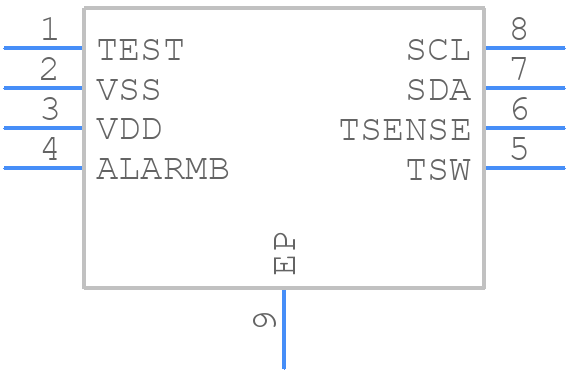

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LC709203FQH-01TWG
Part Number LC709203FQH-01TWG
Manufacturer onsemi
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - WDFN8 3x4, 0.65P CASE 509AF ISSUE C
Released Date Dec 27, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LC709203FQH-01TWG Details

Manufacturer Part Number:
LC709203FQH-01TWG
Brand Name:
ON Semiconductor
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Manufacturer Package Code:
509AF
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
0
Analog IC - Other Type:
BATTERY GAUGE
JESD-30 Code:
R-PDSO-N8
JESD-609 Code:
e3
Length:
4 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.16,25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
4.5 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

LC709203FQH-01TWG Frequently Asked Questions (FAQs)

A good PCB layout for the LC709203FQH-01TWG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
To ensure proper power-up and initialization, apply a stable input voltage, ensure the EN pin is high, and wait for the POR (Power-On Reset) signal to settle before using the device.
The maximum allowed voltage on the input pins of the LC709203FQH-01TWG is 6.5V, exceeding which may cause permanent damage to the device.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods to prevent overheating.
To protect the LC709203FQH-01TWG from ESD, use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device, and follow proper handling and storage procedures to prevent damage.
