A good PCB layout for the LC709203FQH-02TWG should minimize noise and parasitic inductance. Place the device close to the battery, use a solid ground plane, and keep the input and output traces short and wide. Avoid routing high-frequency signals near the device.
To ensure accurate fuel gauge readings, calibrate the device during manufacturing or production testing. Also, ensure that the battery chemistry and capacity are correctly configured in the device. Regularly update the device's learned capacity and state of charge to maintain accuracy.
The LC709203FQH-02TWG can operate from -40°C to 85°C, but the device's accuracy and performance may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.
Yes, the LC709203FQH-02TWG supports multiple battery chemistries, including Li-ion, Li-polymer, and Li-iron phosphate. However, the device may require configuration and calibration for each specific battery chemistry.
The LC709203FQH-02TWG has a sleep mode to conserve power. To wake up the device, apply a pulse to the WAKE pin or use the I2C interface to send a wake-up command. Ensure that the device is properly configured and calibrated before entering sleep mode to maintain accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC709203FQH-02TWG Overview

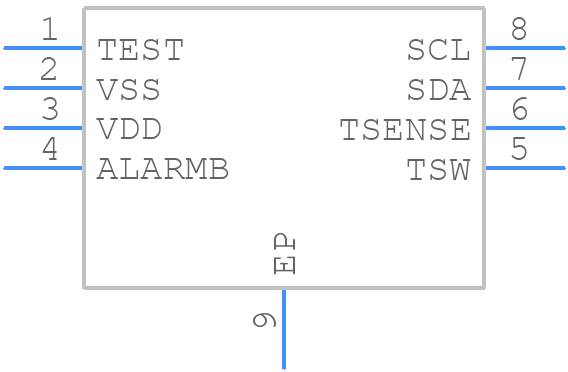

Use the download button to access the LC709203FQH-02TWG schematic symbol, PCB footprint, and 3D model.
