A good PCB layout for the LC709205FXE-01TBG involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the battery connection. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The LC709205FXE-01TBG fuel gauge can be calibrated by using the CAL register to set the capacity of the battery. The device also has a built-in calibration mode that can be enabled by setting the CAL_MODE bit in the CONTROL register. During calibration, the device measures the battery voltage and capacity and stores the data in the CAL register.
The accuracy of the fuel gauge in the LC709205FXE-01TBG is typically ±5% over the entire operating range of the device. However, this accuracy can be affected by factors such as battery age, temperature, and charging/discharging cycles.
No, the LC709205FXE-01TBG is designed to work with rechargeable batteries only. It uses the battery's charging/discharging cycles to estimate the remaining capacity, which is not applicable to non-rechargeable batteries.
The LC709205FXE-01TBG has a built-in power-on reset (POR) circuit that resets the device when the power supply voltage falls below a certain threshold. To handle the POR, ensure that the device is powered up slowly and that the power supply voltage is stable before accessing the device's registers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC709205FXE-01TBG Overview

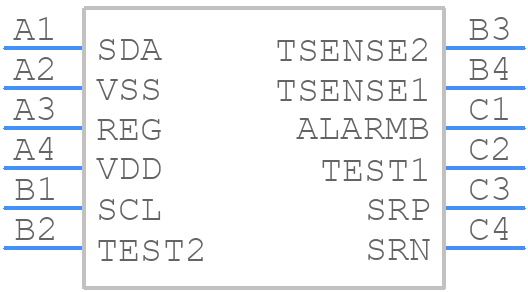

Use the download button to access the LC709205FXE-01TBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC709,
or try a keyword search, such as Power Management Circuits
