LC75700T-TLM-E - onsemi

Description: ON Semiconductor LC75700T-TLM-E Motor Driver,, Key Scanning, 20-Pin TSSOP

Download LC75700T-TLM-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

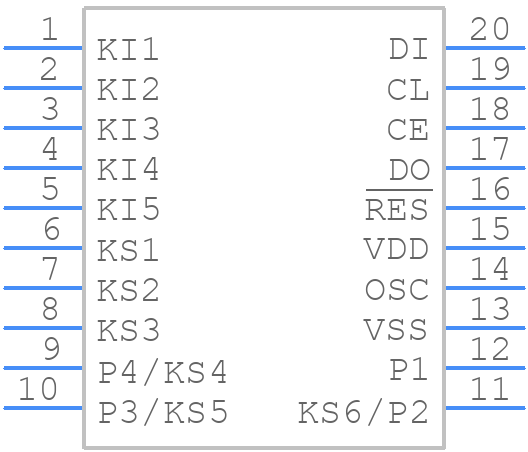

LC75700T-TLM-E - onsemi - PCB symbol
click to zoom
PCB Footprints
LC75700T-TLM-E - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - LC75700T-TLM-E
click to zoom
3D Models
LC75700T-TLM-E - onsemi - 3D model - Small Outline Packages - LC75700T-TLM-E
click to zoom

LC75700T-TLM-E Details

  • Manufacturer Part Number:

    LC75700T-TLM-E

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    20

  • Manufacturer Package Code:

    948AX

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    3

  • Package Code:

    TFQFP

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN BISMUTH

  • Time@Peak Reflow Temperature-Max (s):

    30

LC75700T-TLM-E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LC75700T-TLM-E is 2.7V to 5.5V.
  • The LC75700T-TLM-E can be configured for I2C or SPI interface by setting the MODE pin high or low, respectively, during power-up. Consult the datasheet for specific pin configurations.
  • The maximum clock frequency supported by the LC75700T-TLM-E is 10 MHz for I2C mode and 20 MHz for SPI mode.
  • The LC75700T-TLM-E has a built-in POR circuit that resets the device when the power supply voltage rises above 2.2V. No external components are required.
  • The typical current consumption of the LC75700T-TLM-E is 1.5 mA in active mode and 10 μA in standby mode.
