LC76GABMD - Quectel

Description: GNSS / GPS Modules Single band, 4 GNSS, w/ LNA (Airoha 3352)

Download LC76GABMD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

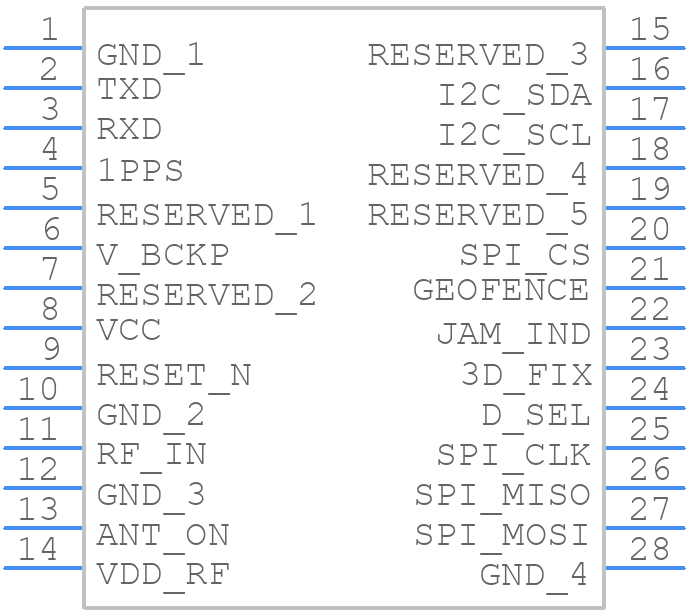

Symbol
LC76GABMD - Quectel - PCB symbol
click to zoom

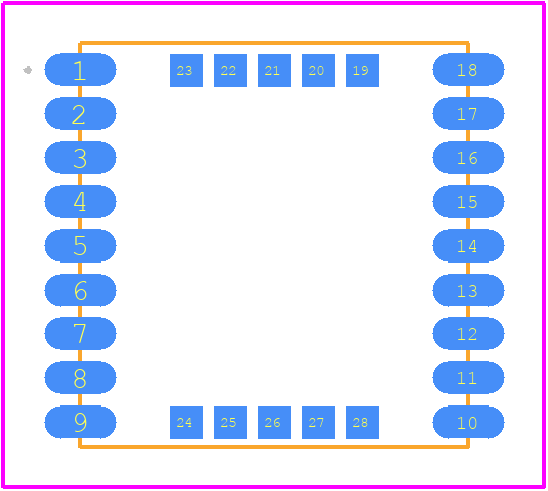

PCB Footprints
LC76GABMD - Quectel PCB footprint - Other - Other - LC76GABMD-3
click to zoom
3D Models
LC76GABMD - Quectel - 3D model - Other - LC76GABMD-3
click to zoom

LC76GABMD Details

  • Manufacturer Part Number:

    LC76GABMD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SMD-28

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

  • JESD-30 Code:

    R-XQMA-N28

  • Length:

    10.1 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.55 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    QUAD

  • Width:

    9.7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LC76GABMD Frequently Asked Questions (FAQs)

  • The maximum power consumption of the LC76GABMD module is around 2.5W, but it can vary depending on the operating mode and frequency band.
  • The LC76GABMD module supports multiple frequency bands, and configuration can be done through AT commands or by using the Quectel proprietary software tool, Quectel Qtunnel.
  • The maximum data transfer rate of the LC76GABMD module is up to 300Mbps downlink and 50Mbps uplink, depending on the network and operating conditions.
  • Yes, the LC76GABMD module supports voice calls, including VoLTE and CSFB, but it requires additional hardware and software configurations.
  • The LC76GABMD module supports various security protocols, including SSL/TLS, DTLS, and IPSec. Implementation requires configuring the module with the desired security protocol and using secure communication protocols in the application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LC76GABMD Overview

Use the download button to access the LC76GABMD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC76G, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
