A good PCB layout for the LC823450TA-2H involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the VCC and GND pins. Additionally, it's recommended to use a decoupling capacitor between VCC and GND, and to keep the input and output traces away from each other to minimize crosstalk.
To ensure proper power and biasing, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage to the VIN pin is within the recommended range of 2.7V to 5.5V. Additionally, the bias voltage (VBIAS) should be set to 1.65V using an external resistor divider network.
The LC823450TA-2H can handle clock frequencies up to 100 MHz. However, it's recommended to consult the datasheet for specific clock frequency limitations based on the desired application and operating conditions.
The LC823450TA-2H can be configured for different audio formats such as I2S, PCM, and DSP using the MODE pin. Consult the datasheet for specific configuration settings and pin connections for each audio format.
The power consumption of the LC823450TA-2H depends on the operating frequency and mode. According to the datasheet, the typical power consumption is around 20mA at 5V and 100MHz clock frequency. However, it's recommended to consult the datasheet for specific power consumption values based on the desired application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC823450TA-2H Overview

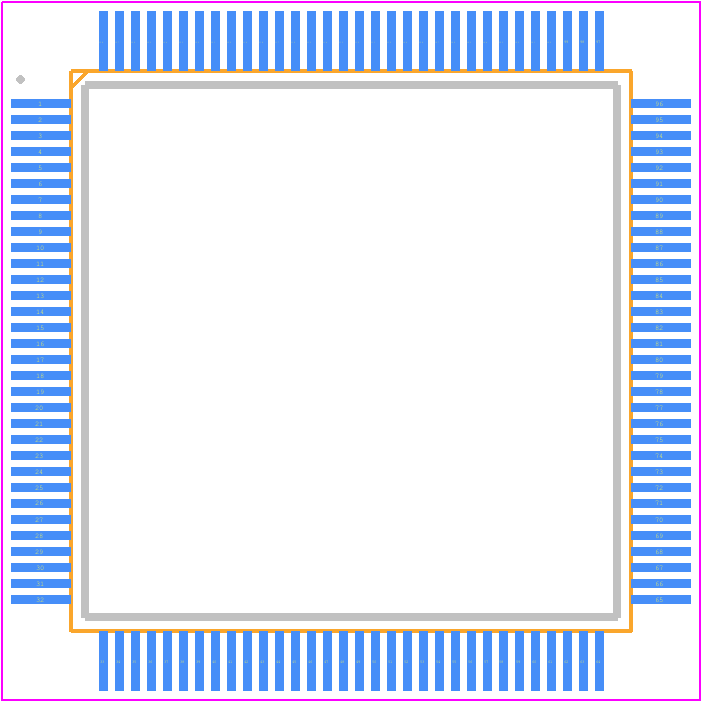

Use the download button to access the LC823450TA-2H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC823,
or try a keyword search, such as Other Consumer ICs
