LCFE121002A900TG - LITTELFUSE

Description: Common Mode Chokes / Filters 90ohms 25% 100A 2 Lines 1210

Download LCFE121002A900TG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

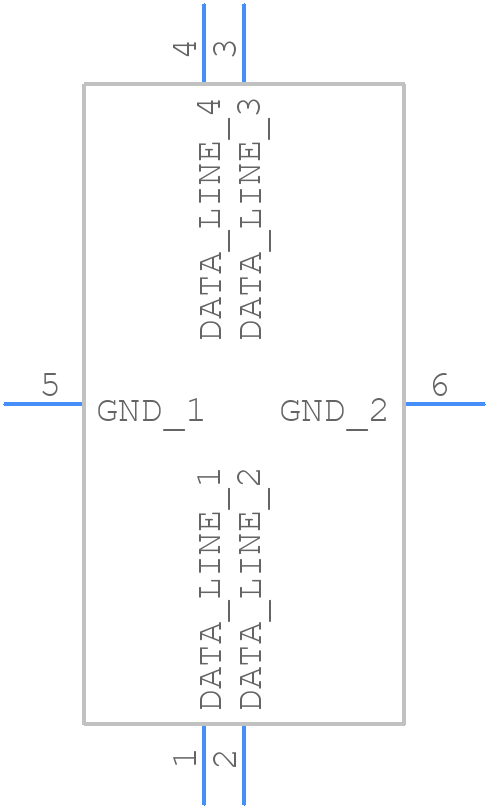

LCFE121002A900TG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LCFE121002A900TG - LITTELFUSE PCB footprint - Other - Other - LCFE121002A900TG
click to zoom
3D Models
LCFE121002A900TG - LITTELFUSE - 3D model - Other - LCFE121002A900TG
click to zoom

LCFE121002A900TG Details

  • Manufacturer Part Number:

    LCFE121002A900TG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.49

  • Capacitance:

    1.7 µF

  • DC Resistance-Max:

    4 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    1.27 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    90 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    5 V

  • Width:

    1 mm

LCFE121002A900TG Frequently Asked Questions (FAQs)

  • The recommended land pattern for LCFE121002A900TG is available in the Littelfuse Inc. footprint library or can be found in the IPC-7351 standard.
  • To ensure reliability in high-temperature applications, follow the recommended derating guidelines, ensure proper thermal management, and consider using a thermally conductive interface material.
  • Yes, the LCFE121002A900TG is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the component's self-resonant frequency and impedance characteristics.
  • The maximum allowable voltage for the LCFE121002A900TG is 100 V, as specified in the datasheet. Exceeding this voltage may lead to component failure.
  • Handle the LCFE121002A900TG by the edges to prevent damage to the component. Use a soldering iron with a temperature below 260°C (500°F) and avoid applying excessive force or bending.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCFE121002A900TG Overview

Use the download button to access the LCFE121002A900TG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCFE1, or try a keyword search, such as Data Line Filters
