LCM-S01601DSR footprint, schematic symbol and 3D model by Lumex

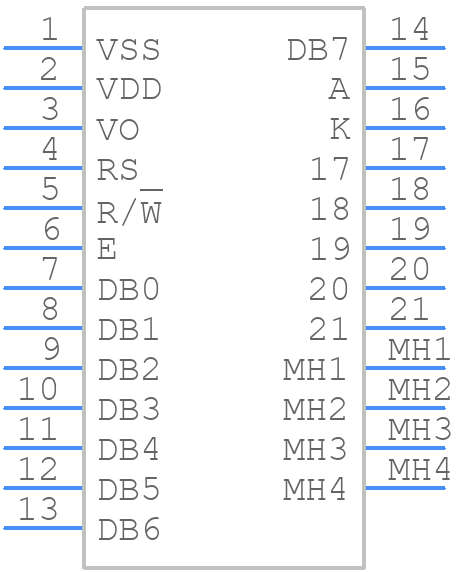

Symbol

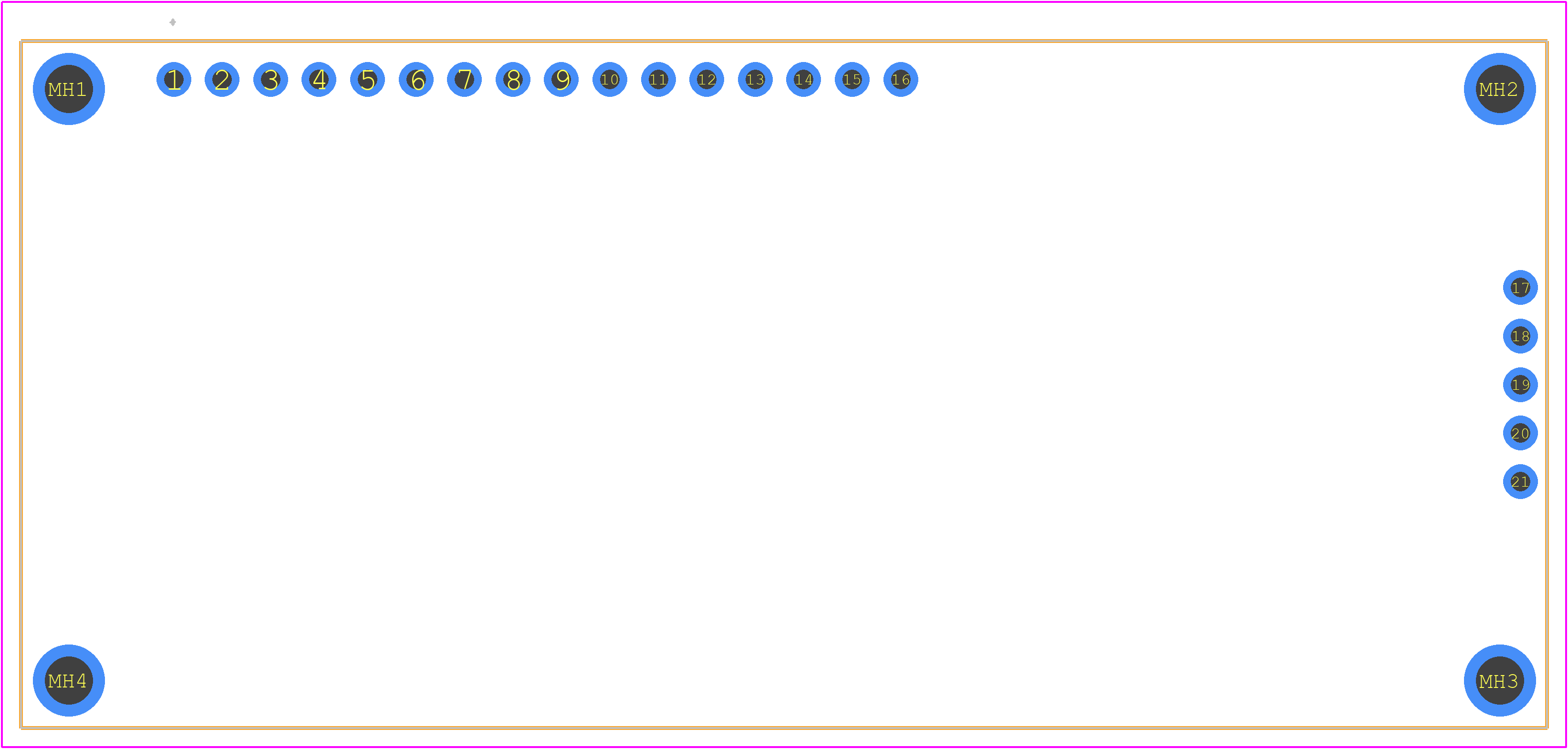

PCB Footprints

3D Models

LCM-S01601DSR Details

The recommended storage condition for LCM-S01601DSR is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
While LCM-S01601DSR is designed for indoor use, it can be used in outdoor applications with proper protection. Ensure the device is sealed in a waterproof enclosure and protected from direct sunlight, moisture, and extreme temperatures.
The typical response time of LCM-S01601DSR is around 10-20 ms. However, this may vary depending on the specific application, driving circuit, and environmental conditions.
No, LCM-S01601DSR is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance. Ensure you use a 3.3V power supply to maintain the device's reliability and performance.
The maximum operating temperature range for LCM-S01601DSR is -20°C to 70°C. Operating the device outside this range may affect its performance, reliability, or lifespan.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LCM-S01601DSR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCM-S, or try a keyword search, such as LED Displays
