LCM-S02002DSR footprint, schematic symbol and 3D model by Lumex

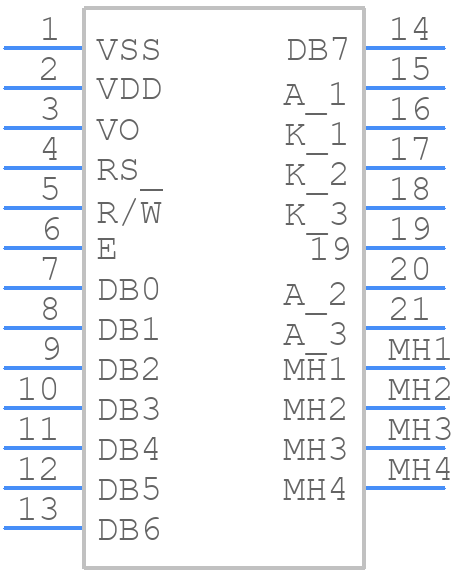

Symbol

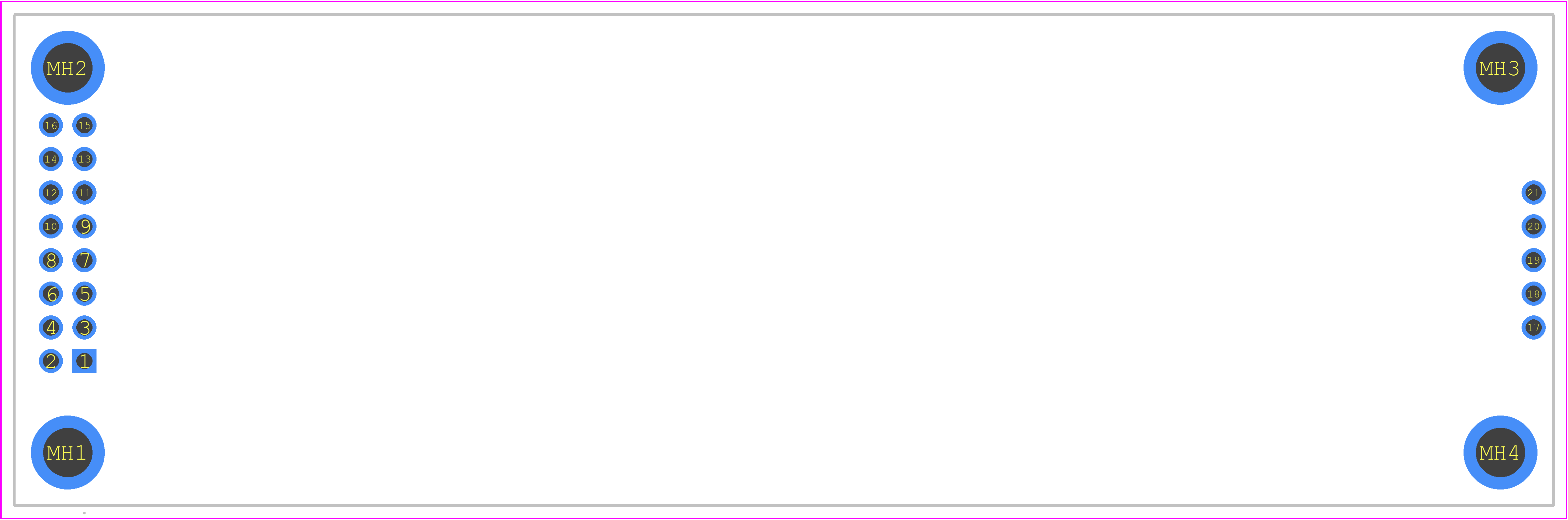

PCB Footprints

3D Models

LCM-S02002DSR Details

The recommended operating temperature range for the LCM-S02002DSR is -20°C to 70°C, and the storage temperature range is -30°C to 80°C.
The LCM-S02002DSR uses a 6800/8080 parallel interface, and it is compatible with 5V and 3.3V logic levels. You can interface with it using a microcontroller or a dedicated display driver IC.
The typical power consumption of the LCM-S02002DSR is around 200-300mA, depending on the display mode and backlight usage. The backlight current is typically around 100-150mA.
The LCM-S02002DSR is not designed for high-humidity environments. It is recommended to use it in environments with a relative humidity of 60% or less. If you need to use it in a high-humidity environment, you may need to add additional protection or coatings to prevent moisture damage.
The brightness of the LCM-S02002DSR display can be adjusted by controlling the backlight voltage or current. You can use a PWM signal to adjust the backlight brightness, or use a dedicated backlight driver IC to control the brightness.

Community Provided

System Verified

Community Approved

Use the download button to access the LCM-S02002DSR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCM-S, or try a keyword search, such as LED Displays
