Lattice provides a PCB layout and routing guide for the LCMXO2 family, which includes recommendations for signal integrity, power distribution, and thermal management. It's available on the Lattice website.
Lattice recommends using a daisy-chain configuration for JTAG, with each device connected in series. Make sure to follow the JTAG signal routing guidelines and use a JTAG cable with a 1.8V or 3.3V signal level.
The LCMXO2-1200ZE-1SG32C requires a specific power sequencing order: VCCIO, VCC, and then VCCAUX. The power supply voltage must be within the recommended range, and the power-on reset (POR) signal must be asserted during power-up.
Use the Lattice Power Calculator tool to estimate power consumption based on your design's specific requirements. Optimize power consumption by using low-power modes, reducing clock frequencies, and minimizing dynamic power consumption.
The LCMXO2-1200ZE-1SG32C has a maximum junction temperature of 100°C. Ensure good thermal conductivity by using a heat sink, thermal interface material, and a PCB with thermal vias. Monitor the device's temperature using the built-in thermal sensor.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCMXO2-1200ZE-1SG32C Overview

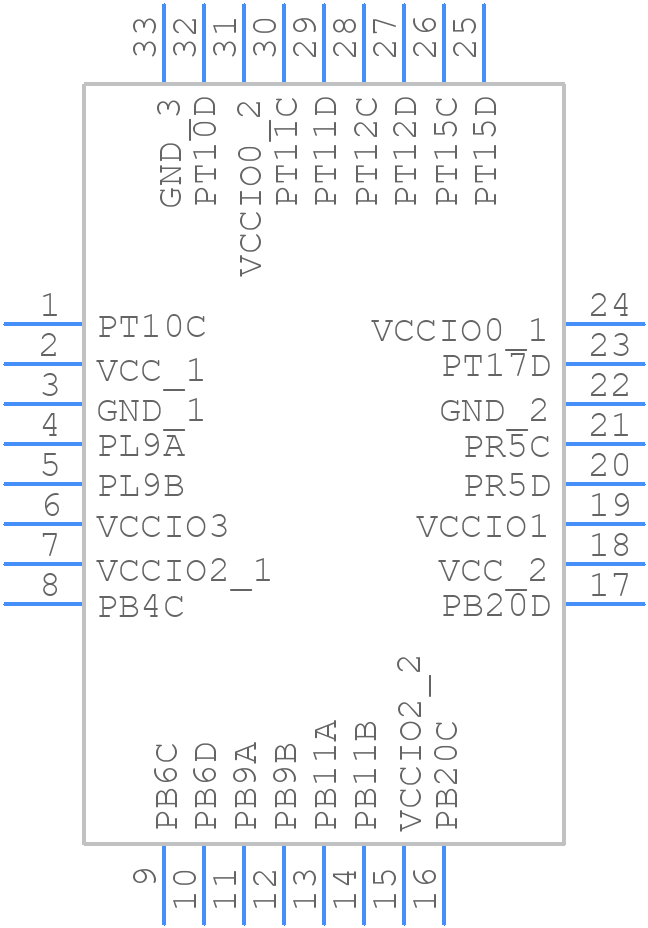

Use the download button to access the LCMXO2-1200ZE-1SG32C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCMXO,
or try a keyword search, such as Field Programmable Gate Arrays
