LCMXO2-2000HE-4BG256C footprint, schematic symbol and 3D model by Lattice Semiconductor

Symbol

click to zoom

PCB Footprints

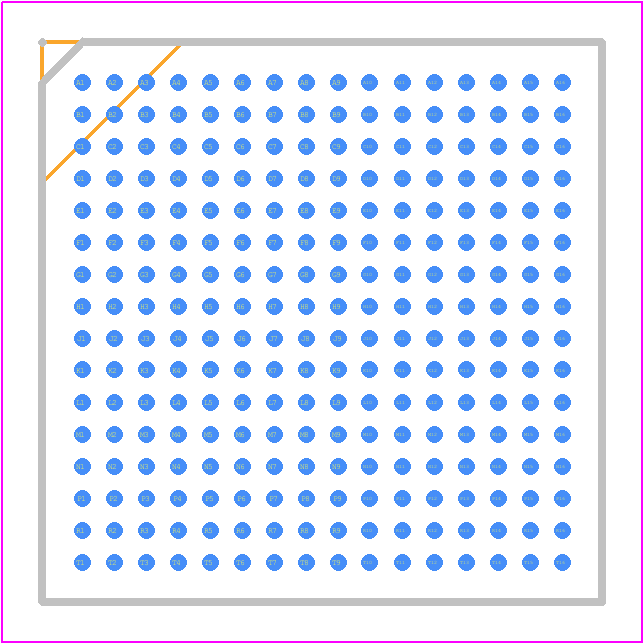

LCMXO2-2000HE-4BG256C - Lattice Semiconductor PCB footprint - BGA - BGA - 256-Ball caBGA Package

click to zoom

3D Models

LCMXO2-2000HE-4BG256C - Lattice Semiconductor - 3D model - BGA - 256-Ball caBGA Package

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LCMXO2-2000HE-4BG256C
Part Number LCMXO2-2000HE-4BG256C
Manufacturer Lattice Semiconductor
Pin Count 256
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 256-Ball caBGA Package
Released Date Mar 17, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LCMXO2-2000HE-4BG256C Details

Manufacturer Part Number:
LCMXO2-2000HE-4BG256C
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, Philippines, Taiwan
ECCN Code:
3A991.D
HTS Code:
8542.39.00.01
Manufacturer:
Lattice Semiconductor Corporation
YTEOL:
19
Clock Frequency-Max:
130.5 MHz
JESD-30 Code:
S-PBGA-B256
JESD-609 Code:
e1
Length:
14 mm
Moisture Sensitivity Level:
3
Number of Inputs:
206
Number of Logic Cells:
2112
Number of Outputs:
206
Number of Terminals:
256
Operating Temperature-Max:
85 °C
Organization:
264 CLBS
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Equivalence Code:
BGA256,16X16,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Packing Method:
TRAY
Peak Reflow Temperature (Cel):
260
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Qualification Status:
Not Qualified
Seated Height-Max:
1.7 mm
Supply Voltage-Max:
1.26 V
Supply Voltage-Min:
1.14 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm

LCMXO2-2000HE-4BG256C Frequently Asked Questions (FAQs)

The LCMXO2-2000HE-4BG256C has an industrial temperature range of -40°C to 100°C, and a commercial temperature range of 0°C to 85°C.
The LCMXO2-2000HE-4BG256C has a built-in clock tree that can be configured using the Lattice Diamond software. The clock tree can be used to generate clock signals for the FPGA fabric, and can be driven by an external clock source or an internal oscillator.
The power consumption of the LCMXO2-2000HE-4BG256C depends on the operating frequency, voltage, and usage of the device. According to the datasheet, the typical power consumption is around 100-200 mW at 1.2V and 50 MHz. However, this can vary depending on the specific application and usage.
Yes, the LCMXO2-2000HE-4BG256C has high-speed I/O capabilities that support interfaces like PCIe and SATA. The device has dedicated high-speed transceivers that can operate at speeds up to 3.2 Gbps.
The LCMXO2-2000HE-4BG256C has built-in security features like encryption and secure boot mechanisms to protect the design from unauthorized access. Additionally, Lattice Semiconductor provides a range of security tools and IP cores to help secure the design.

Trust Checks

Community Provided

System Verified

Community Approved

LCMXO2-2000HE-4BG256C Overview

Use the download button to access the LCMXO2-2000HE-4BG256C schematic symbol, PCB footprint, and 3D model.
