The LCMXO2-2000ZE-1BG256C has an industrial temperature range of -40°C to 100°C, and a commercial temperature range of 0°C to 70°C.
The LCMXO2-2000ZE-1BG256C has a built-in clock tree that can be configured using the Lattice Diamond software. The clock tree can be used to generate clock signals for the FPGA fabric, and can be driven by an external clock source or an internal oscillator.
The power consumption of the LCMXO2-2000ZE-1BG256C depends on the operating frequency, voltage, and usage of the device. According to the datasheet, the typical power consumption is around 100-200 mW at 1.2V and 50 MHz. However, this can vary depending on the specific application and usage.
The LCMXO2-2000ZE-1BG256C has a maximum clock frequency of 320 MHz, which may not be sufficient for high-speed interfaces like PCIe or SATA. However, it can be used for lower-speed interfaces like SPI, I2C, or UART. For high-speed interfaces, a higher-speed FPGA like the Lattice ECP5 or ECP4 may be more suitable.
The LCMXO2-2000ZE-1BG256C can be programmed and configured using the Lattice Diamond software, which provides a comprehensive development environment for designing, implementing, and testing FPGA-based systems. The device can be programmed using a JTAG interface or a SPI flash interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCMXO2-2000ZE-1BG256C Overview

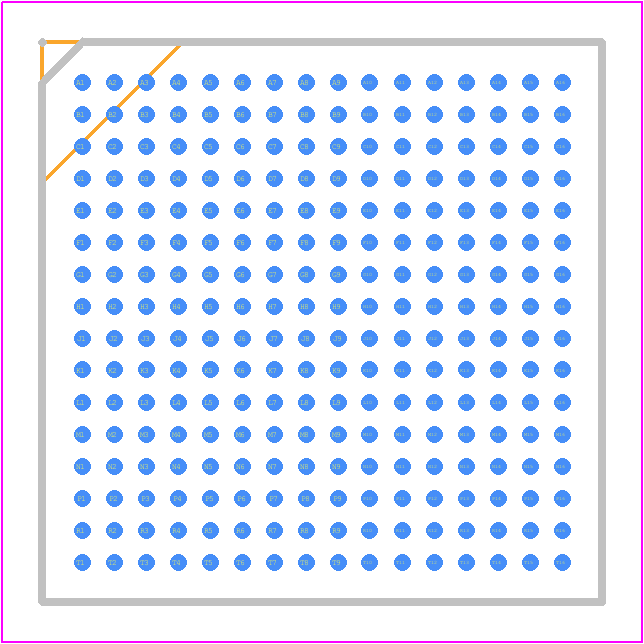

Use the download button to access the LCMXO2-2000ZE-1BG256C schematic symbol, PCB footprint, and 3D model.
