LCMXO2-2000ZE-1UWG49ITR - Lattice Semiconductor

Description: IC CPLD 1056MC 10.21NS 49WLCS

Download LCMXO2-2000ZE-1UWG49ITR Model

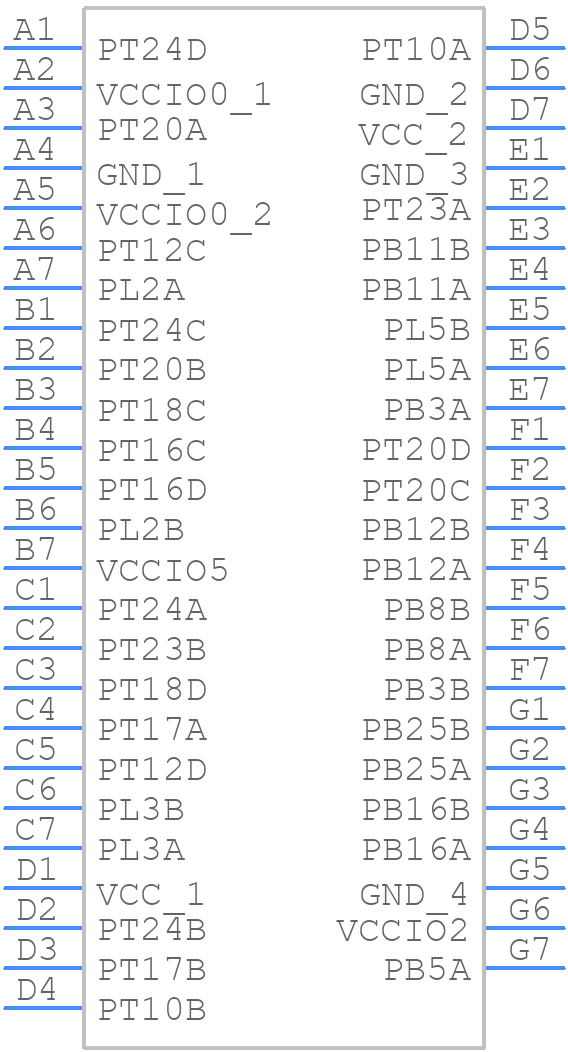

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LCMXO2-2000ZE-1UWG49ITR - Lattice Semiconductor PCB footprint - BGA - BGA - 49 BALL WLCS PACKAGE
click to zoom
3D Models
LCMXO2-2000ZE-1UWG49ITR - Lattice Semiconductor  - 3D model - BGA - 49 BALL WLCS PACKAGE
click to zoom

LCMXO2-2000ZE-1UWG49ITR Details

  • Manufacturer Part Number:

    LCMXO2-2000ZE-1UWG49ITR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Clock Frequency-Max:

    86.6 MHz

  • JESD-30 Code:

    R-PBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    3.185 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    264

  • Number of Inputs:

    38

  • Number of Logic Cells:

    2112

  • Number of Outputs:

    38

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    264 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA49,7X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.106 mm

LCMXO2-2000ZE-1UWG49ITR Frequently Asked Questions (FAQs)

  • The LCMXO2-2000ZE-1UWG49ITR has an operating temperature range of -40°C to 100°C.
  • You can implement a clock tree using the Clock Wizard tool in the Lattice Diamond software, which allows you to create a clock network that meets your design requirements.
  • The power consumption of the LCMXO2-2000ZE-1UWG49ITR depends on the specific design and usage, but the typical power consumption is around 100-200 mW.
  • Yes, the LCMXO2-2000ZE-1UWG49ITR supports high-speed interfaces like PCIe and SATA, with transceiver speeds up to 3.2 Gbps.
  • You can program and configure the LCMXO2-2000ZE-1UWG49ITR using the Lattice Diamond software, which provides a comprehensive development environment for designing, implementing, and testing your FPGA design.
