LCMXO2-256HC-6SG32C - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array 256 LUTs 22 I/O 3.3V -6 Speed

Download LCMXO2-256HC-6SG32C Model

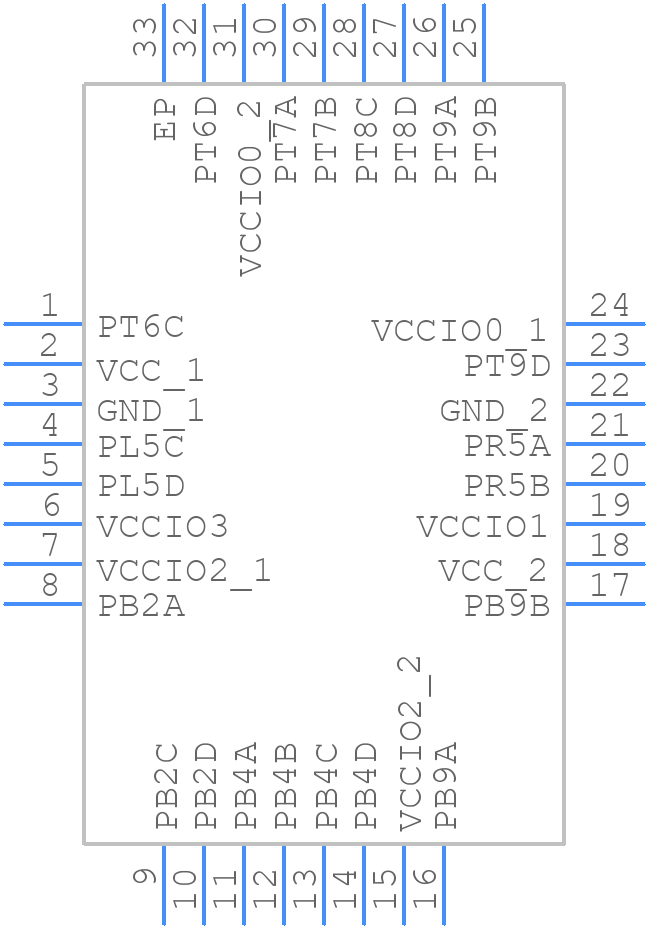

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LCMXO2-256HC-6SG32C - Lattice Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin QFN
click to zoom
3D Models
LCMXO2-256HC-6SG32C - Lattice Semiconductor  - 3D model - Quad Flat No-Lead - 32-Pin QFN
click to zoom

LCMXO2-256HC-6SG32C Details

  • Manufacturer Part Number:

    LCMXO2-256HC-6SG32C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Clock Frequency-Max:

    139 MHz

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    32

  • Number of Inputs:

    21

  • Number of Logic Cells:

    256

  • Number of Outputs:

    21

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Organization:

    32 CLBS

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LCMXO2-256HC-6SG32C Frequently Asked Questions (FAQs)

  • The LCMXO2-256HC-6SG32C has an operating temperature range of -40°C to 100°C (industrial grade) and -40°C to 85°C (commercial grade).
  • The LCMXO2-256HC-6SG32C has a built-in clock management system that allows for the creation of a clock tree. You can use the Lattice Diamond software to implement a clock tree by defining clock domains, clock sources, and clock sinks.
  • The Phase-Locked Loop (PLL) in the LCMXO2-256HC-6SG32C can operate up to 400 MHz.
  • The I/O banks in the LCMXO2-256HC-6SG32C can be configured using the Lattice Diamond software. You can specify the I/O standard, voltage, and slew rate for each bank.
  • The power consumption of the LCMXO2-256HC-6SG32C depends on the operating frequency, voltage, and usage. However, the typical power consumption is around 100-200 mW at 1.2V and 100 MHz.
