LCMXO2-4000HC-4BG332I - Lattice Semiconductor

Description: LATTICE SEMICONDUCTOR - LCMXO2-4000HC-4BG332I - CPLD, MachX02 Series, FLASH, 4320, 275 I/O's, BGA, 332 Pins, 269 MHz

Download LCMXO2-4000HC-4BG332I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

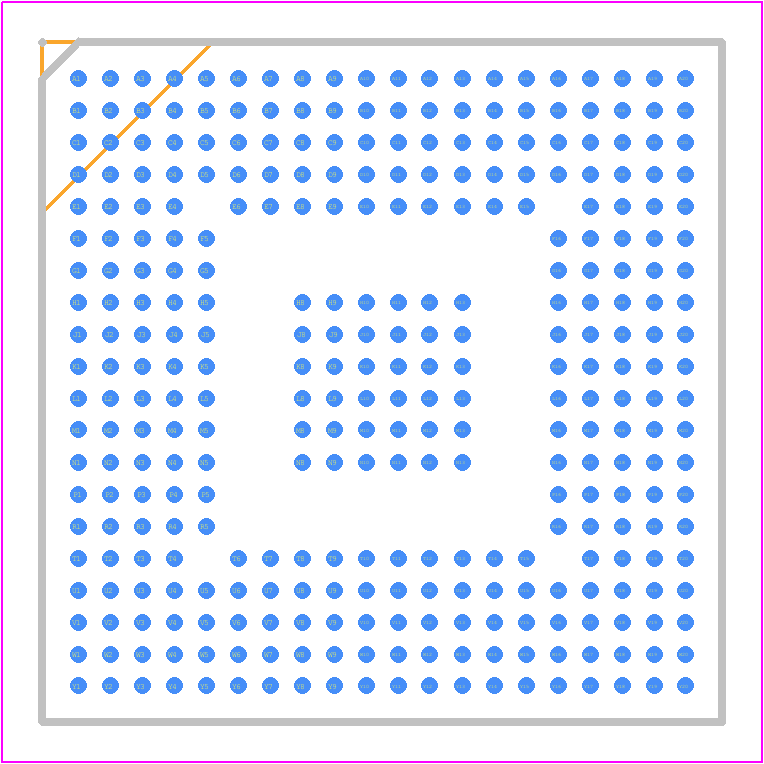

LCMXO2-4000HC-4BG332I - Lattice Semiconductor PCB footprint - BGA - BGA - 332-Ball caBGA-6
click to zoom
3D Models
LCMXO2-4000HC-4BG332I - Lattice Semiconductor  - 3D model - BGA - 332-Ball caBGA-6
click to zoom

LCMXO2-4000HC-4BG332I Details

  • Manufacturer Part Number:

    LCMXO2-4000HC-4BG332I

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Philippines, Taiwan

  • ECCN Code:

    3A991.D

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Clock Frequency-Max:

    129.1 MHz

  • JESD-30 Code:

    S-PBGA-B332

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    274

  • Number of Logic Cells:

    4320

  • Number of Outputs:

    274

  • Number of Terminals:

    332

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    540 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA332,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

LCMXO2-4000HC-4BG332I Frequently Asked Questions (FAQs)

  • The LCMXO2-4000HC-4BG332I has an operating temperature range of -40°C to 100°C.
  • You can implement a clock tree using the FPGA's built-in clock management resources, such as the Phase-Locked Loop (PLL) and the Clock Management Unit (CMU). The Lattice Diamond software provides tools to help you design and implement a clock tree.
  • The maximum frequency of the FPGA's I/Os is 480 Mbps for LVCMOS33 and 840 Mbps for LVDS.
  • You can configure the FPGA's power management using the Power Manager IP core in the Lattice Diamond software. This allows you to control the power consumption of the FPGA and optimize it for your specific application.
  • The latency of the FPGA's memory interface depends on the specific configuration and the type of memory being used. However, the typical latency for a DDR3 memory interface is around 2-3 clock cycles.
