LCMXO2-640HC-4SG48C - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array MachXO2 High Performance; 640 LUTs; 2.5/3.3V

Download LCMXO2-640HC-4SG48C Model

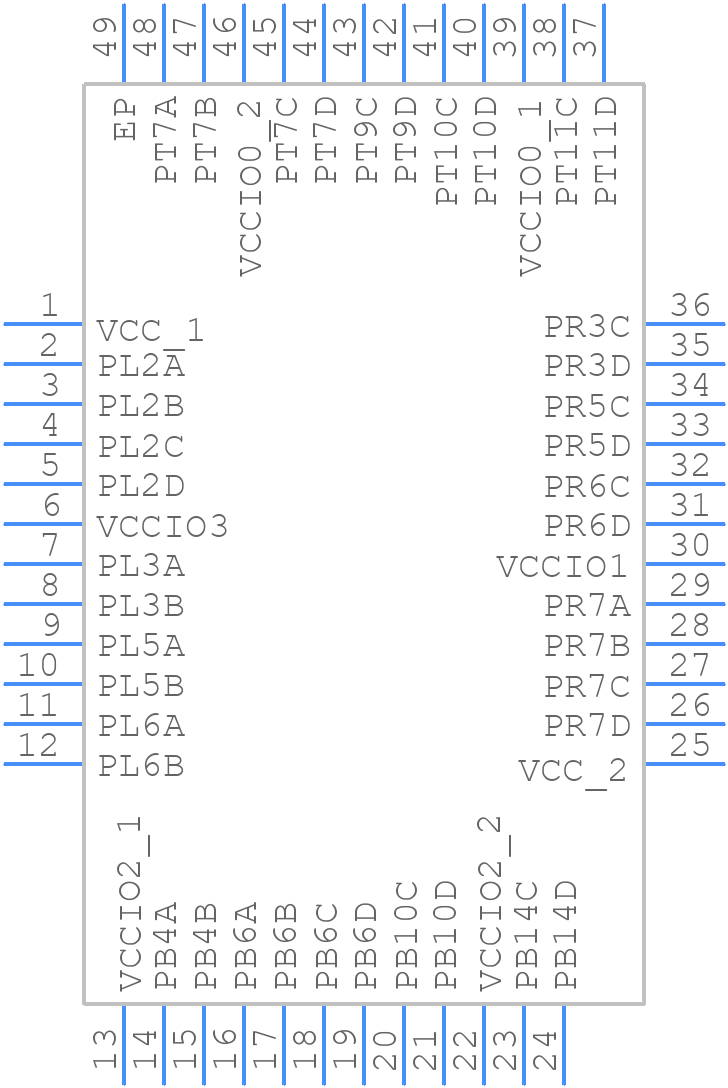

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LCMXO2-640HC-4SG48C - Lattice Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 Pin QFN_1
click to zoom
3D Models
LCMXO2-640HC-4SG48C - Lattice Semiconductor  - 3D model - Quad Flat No-Lead - 48 Pin QFN_1
click to zoom

LCMXO2-640HC-4SG48C Details

  • Manufacturer Part Number:

    LCMXO2-640HC-4SG48C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-05-06

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Clock Frequency-Max:

    136.6 MHz

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    80

  • Number of Inputs:

    40

  • Number of Logic Cells:

    640

  • Number of Outputs:

    40

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Organization:

    80 CLBS

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LCMXO2-640HC-4SG48C Frequently Asked Questions (FAQs)

  • The LCMXO2-640HC-4SG48C has an operating temperature range of -40°C to 100°C (industrial grade) and -40°C to 85°C (commercial grade).
  • The LCMXO2-640HC-4SG48C has a built-in clock management system that allows for the creation of a clock tree. You can use the Lattice Diamond software to implement a clock tree using the device's PLLs and clock routing resources.
  • The PLLs in the LCMXO2-640HC-4SG48C can operate up to 450 MHz.
  • The I/O banks in the LCMXO2-640HC-4SG48C can be configured using the Lattice Diamond software. You can set the voltage, slew rate, and other parameters for each I/O bank individually.
  • The power consumption of the LCMXO2-640HC-4SG48C depends on the specific application and usage. However, the typical power consumption is around 100-200 mW at 1.2V and 100 MHz.
