Lattice provides a PCB layout and routing guide for the LCMXO2 family, which includes recommendations for signal integrity, power distribution, and thermal management. It's available on the Lattice website.
Lattice recommends using a daisy-chain configuration for JTAG, with each device connected in series. Make sure to follow the JTAG signal integrity guidelines and use a JTAG cable with a 1.8V or 3.3V signal level, depending on the device voltage.
The internal oscillator has a limited frequency range (up to 100 MHz) and may not meet the required clock accuracy or jitter specifications for all applications. Use an external clock source for high-frequency or high-accuracy clocking requirements, or when you need to synchronize multiple devices.
Use the Lattice Power Calculator tool to estimate power consumption based on your design requirements. Implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS) to minimize power consumption.
The LCMXO2-640HC-5SG48I has built-in security features such as AES encryption, secure boot, and bitstream encryption. Implement these features using the Lattice Diamond software and the Lattice Security User Guide.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCMXO2-640HC-5SG48I Overview

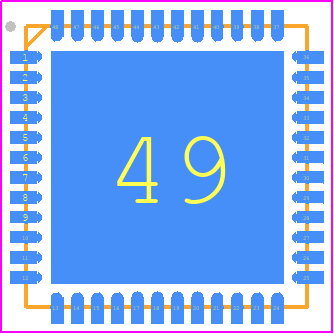

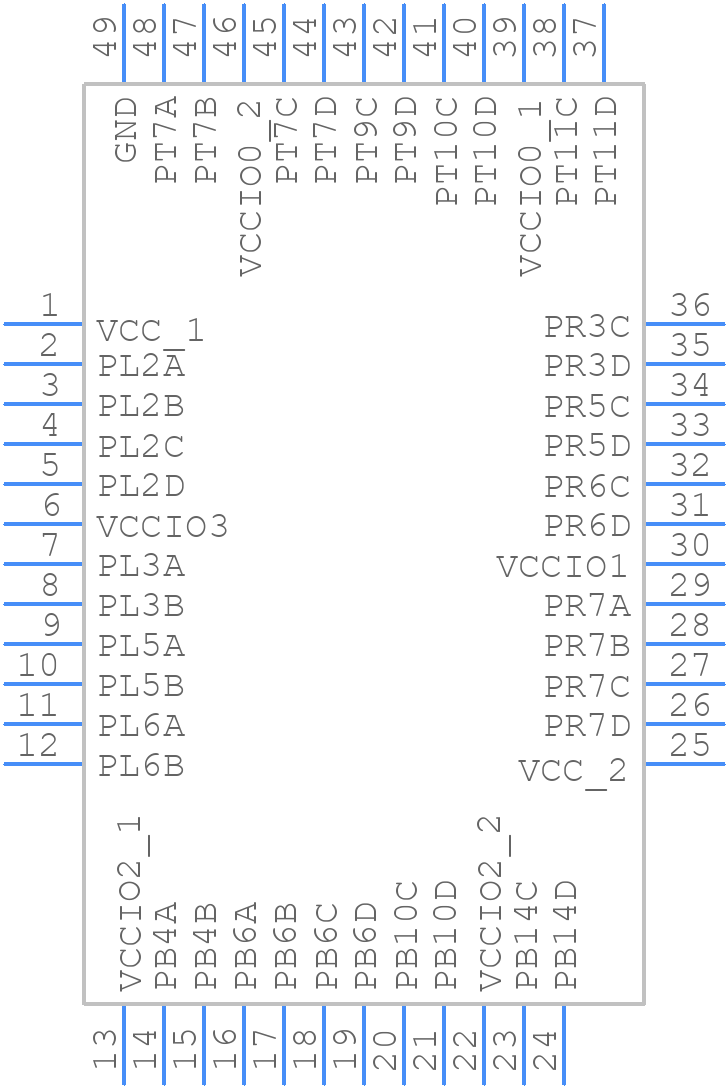

Use the download button to access the LCMXO2-640HC-5SG48I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCMXO,
or try a keyword search, such as Field Programmable Gate Arrays
