LCMXO2-7000HC-5BG256I - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array 6864 LUTs 207 I/O 3.3V 5 SPEED

Download LCMXO2-7000HC-5BG256I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

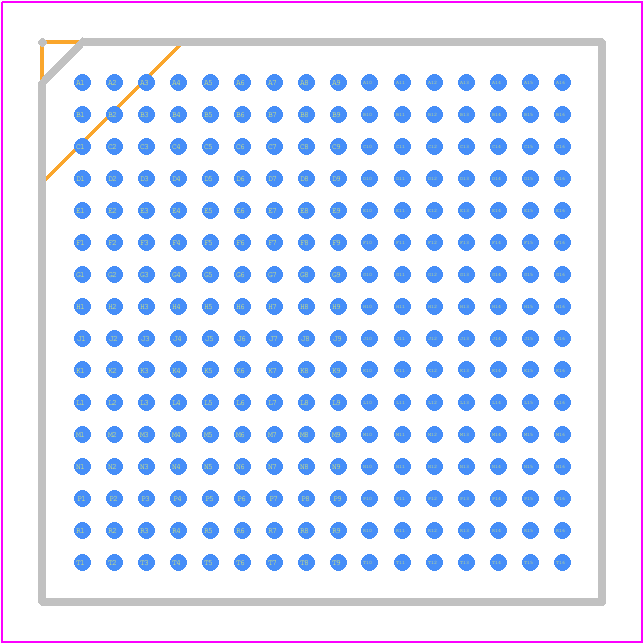

LCMXO2-7000HC-5BG256I - Lattice Semiconductor PCB footprint - BGA - BGA - 256-Ball caBGA Package
click to zoom
3D Models
LCMXO2-7000HC-5BG256I - Lattice Semiconductor  - 3D model - BGA - 256-Ball caBGA Package
click to zoom

LCMXO2-7000HC-5BG256I Details

  • Manufacturer Part Number:

    LCMXO2-7000HC-5BG256I

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Philippines, Taiwan

  • ECCN Code:

    3A991.D

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Clock Frequency-Max:

    128.7 MHz

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    206

  • Number of Logic Cells:

    6864

  • Number of Outputs:

    206

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    858 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

LCMXO2-7000HC-5BG256I Frequently Asked Questions (FAQs)

  • The LCMXO2-7000HC-5BG256I has an operating temperature range of -40°C to 100°C.
  • You can implement a clock tree using the FPGA's built-in clock management resources, such as the Phase-Locked Loop (PLL) and the Clock Management Unit (CMU). The Lattice Diamond software provides tools to help you design and implement a clock tree.
  • The maximum frequency achievable with the LCMXO2-7000HC-5BG256I depends on the specific design and implementation. However, the FPGA has a maximum clock frequency of 500 MHz.
  • You can configure the FPGA's I/O banks using the Lattice Diamond software. The software provides a graphical interface to configure the I/O banks, including setting the voltage levels, termination, and drive strength.
  • The power consumption of the LCMXO2-7000HC-5BG256I depends on the specific design and implementation. However, the FPGA has a typical static power consumption of 100 mW and a dynamic power consumption of 100 mW/MHz.
