LCMXO2-7000HC-6BG332I - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array 6864 LUTs 279 I/O 3.3V 6 SPEED

Download LCMXO2-7000HC-6BG332I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

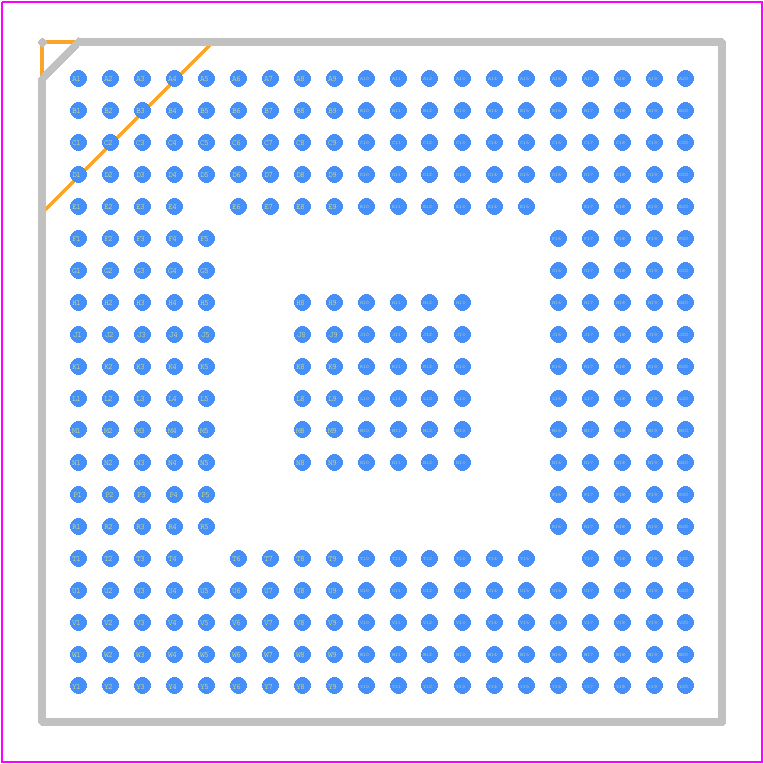

LCMXO2-7000HC-6BG332I - Lattice Semiconductor PCB footprint - BGA - BGA - 332-Ball caBGA-10
click to zoom
3D Models
LCMXO2-7000HC-6BG332I - Lattice Semiconductor  - 3D model - BGA - 332-Ball caBGA-10
click to zoom

LCMXO2-7000HC-6BG332I Details

  • Manufacturer Part Number:

    LCMXO2-7000HC-6BG332I

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Philippines, Taiwan

  • ECCN Code:

    3A991.D

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Clock Frequency-Max:

    128.7 MHz

  • JESD-30 Code:

    S-PBGA-B332

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    278

  • Number of Logic Cells:

    6864

  • Number of Outputs:

    278

  • Number of Terminals:

    332

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    858 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA332,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

LCMXO2-7000HC-6BG332I Frequently Asked Questions (FAQs)

  • The LCMXO2-7000HC-6BG332I has an operating temperature range of -40°C to 100°C.
  • You can implement a clock tree using the Clock Wizard tool in the Lattice Diamond software, which allows you to create a clock network that meets your design requirements.
  • The maximum frequency of the PLL in the LCMXO2-7000HC-6BG332I is 450 MHz.
  • You can configure the I/O banks using the Lattice Diamond software, which allows you to set the voltage, slew rate, and other parameters for each I/O bank.
  • The power consumption of the LCMXO2-7000HC-6BG332I depends on the specific design and operating conditions, but the typical static power consumption is around 100 mW.
