LCMXO256E-4MN100C - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array 256 LUTs 78 IO 1.2V -4 Spd

Download LCMXO256E-4MN100C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

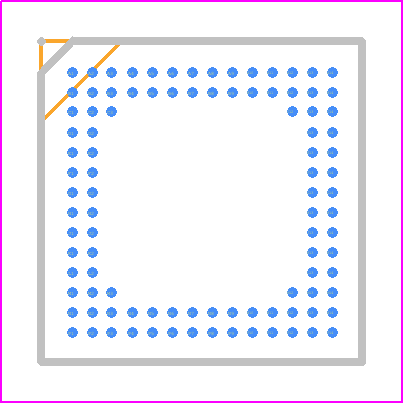

LCMXO256E-4MN100C - Lattice Semiconductor PCB footprint - BGA - BGA - MN100
click to zoom
3D Models
LCMXO256E-4MN100C - Lattice Semiconductor  - 3D model - BGA - MN100
click to zoom

LCMXO256E-4MN100C Details

  • Manufacturer Part Number:

    LCMXO256E-4MN100C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    CSBGA-100

  • Pin Count:

    100

  • Country Of Origin:

    Japan, Malaysia, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    8

  • Clock Frequency-Max:

    156.25 MHz

  • Combinatorial Delay of a CLB-Max:

    4.2 ns

  • JESD-30 Code:

    S-PBGA-B100

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    32

  • Number of Inputs:

    78

  • Number of Logic Cells:

    256

  • Number of Outputs:

    78

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Organization:

    32 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA100,14X14,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.35 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

LCMXO256E-4MN100C Frequently Asked Questions (FAQs)

  • The LCMXO256E-4MN100C has an industrial temperature range of -40°C to 100°C, and an extended temperature range of -40°C to 125°C.
  • The LCMXO256E-4MN100C has a built-in clock tree that can be configured using the Lattice Diamond design software. The clock tree can be used to distribute clock signals to various parts of the design.
  • The power consumption of the LCMXO256E-4MN100C depends on the specific application and usage. However, according to the datasheet, the typical static power consumption is around 50-70 mW, and the dynamic power consumption is around 100-200 mW/MHz.
  • Yes, the LCMXO256E-4MN100C is capable of supporting high-speed interfaces like PCIe and SATA. It has a high-speed I/O capability of up to 1.5 Gbps, making it suitable for high-speed applications.
  • The LCMXO256E-4MN100C has built-in security features like TransFR (Transitional Fault Resistant) and Secure Configuration to prevent unauthorized access and tampering. Additionally, Lattice Semiconductor provides a range of security IP cores and tools to implement encryption and secure boot mechanisms.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCMXO256E-4MN100C Overview

Use the download button to access the LCMXO256E-4MN100C schematic symbol, PCB footprint, and 3D model.
