LCMXO640C-3BN256C - Lattice Semiconductor

Description: LATTICE SEMICONDUCTOR - LCMXO640C-3BN256C - PLD, 640 LUTS, MACHXO, 256CABGA

Download LCMXO640C-3BN256C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

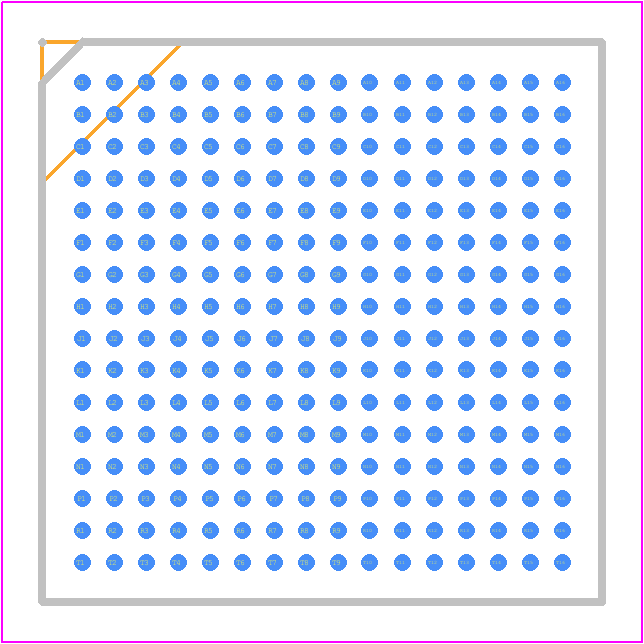

LCMXO640C-3BN256C - Lattice Semiconductor PCB footprint - BGA - BGA - 256-Ball caBGA
click to zoom
3D Models
LCMXO640C-3BN256C - Lattice Semiconductor  - 3D model - BGA - 256-Ball caBGA
click to zoom

LCMXO640C-3BN256C Details

  • Manufacturer Part Number:

    LCMXO640C-3BN256C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    CABGA-256

  • Pin Count:

    256

  • Country Of Origin:

    Japan, Malaysia, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    8

  • Clock Frequency-Max:

    139 MHz

  • Combinatorial Delay of a CLB-Max:

    4.9 ns

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    80

  • Number of Inputs:

    159

  • Number of Logic Cells:

    640

  • Number of Outputs:

    159

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Organization:

    80 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm

LCMXO640C-3BN256C Frequently Asked Questions (FAQs)

  • The LCMXO640C-3BN256C has an industrial temperature range of -40°C to 100°C, and an extended temperature range of -40°C to 125°C.
  • The LCMXO640C-3BN256C has a built-in clock tree that can be configured using the Lattice Diamond design software. The clock tree can be used to distribute clock signals to various parts of the design.
  • The power consumption of the LCMXO640C-3BN256C depends on the specific application and usage. However, according to the datasheet, the typical static power consumption is around 25mA at 1.2V, and the dynamic power consumption is around 100mW at 100MHz.
  • Yes, the LCMXO640C-3BN256C is capable of supporting high-speed interfaces like PCIe and SATA. It has a high-speed I/O capability of up to 1.5Gbps, making it suitable for high-speed applications.
  • The LCMXO640C-3BN256C has built-in security features like TransFR (Transitional Fault Resistant) and Secure Configuration to prevent unauthorized access and tampering. Additionally, Lattice provides a range of security IP cores and tools to implement encryption and secure boot mechanisms.
