The LCS708HG can operate safely between -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
The LCS708HG requires a bias voltage of 12V to 15V on the VCC pin, and a minimum of 10uF capacitance on the VCC pin to ensure stable operation.
The LCS708HG can deliver up to 700mA of output current, but it's recommended to derate the output current to 500mA for optimal reliability and thermal performance.
The LCS708HG has built-in overvoltage protection (OVP) and overcurrent protection (OCP), but it's recommended to add external protection components such as TVS diodes and fuses to ensure robust protection.
A multi-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended for optimal thermal performance. A minimum of 2oz copper thickness is recommended for the PCB.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCS708HG Overview

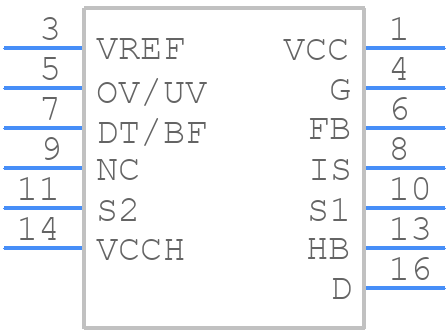

Use the download button to access the LCS708HG schematic symbol, PCB footprint, and 3D model.
