Power Integrations provides a recommended PCB layout in their application note AN-63, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start capacitor and a shutdown resistor to control the rise and fall times of the output voltage.
Operating the LCS7265C-TL at high ambient temperatures can reduce its reliability and lifespan. It's essential to derate the device's power output and ensure adequate cooling to prevent overheating. Power Integrations provides thermal derating curves in the datasheet to help designers make informed decisions.
Yes, the LCS7265C-TL is designed to meet the requirements of high-reliability and safety-critical applications. It's essential to follow Power Integrations' guidelines for design, manufacturing, and testing to ensure the device meets the required standards and regulations.
Power Integrations provides a troubleshooting guide in their application note AN-64, which covers common issues and their solutions. This includes checking the PCB layout, component values, and input/output voltage levels to identify and resolve problems quickly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCS7265C-TL Overview

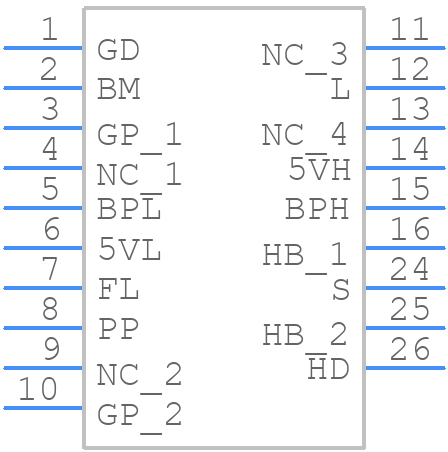

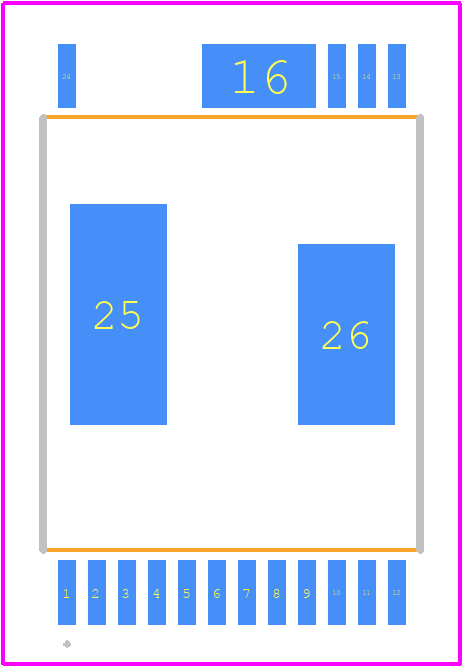

Use the download button to access the LCS7265C-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LCS72,
or try a keyword search, such as Power Management Circuits
