LD0565GWK - Multicomp Pro

Description: 14.2mm (0.56") Dual Digit Common Cathode LED Display, Green 2.6V,100mA,-40°C to +85°C

Download LD0565GWK Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LD0565GWK model

Email notifications will be applied after download.

Send part feedback

Symbol

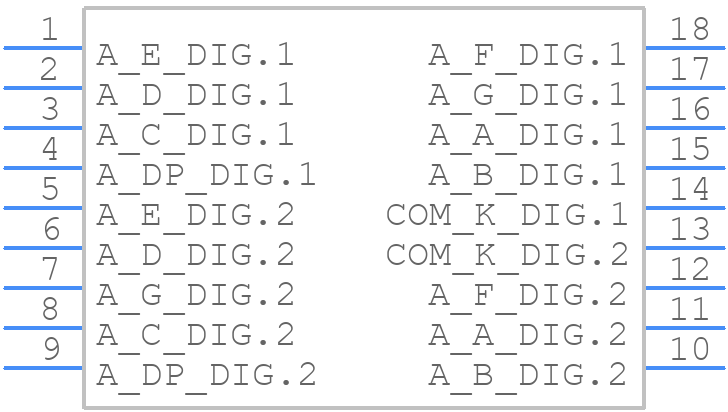

LD0565GWK - Multicomp Pro - PCB symbol

PCB Footprints

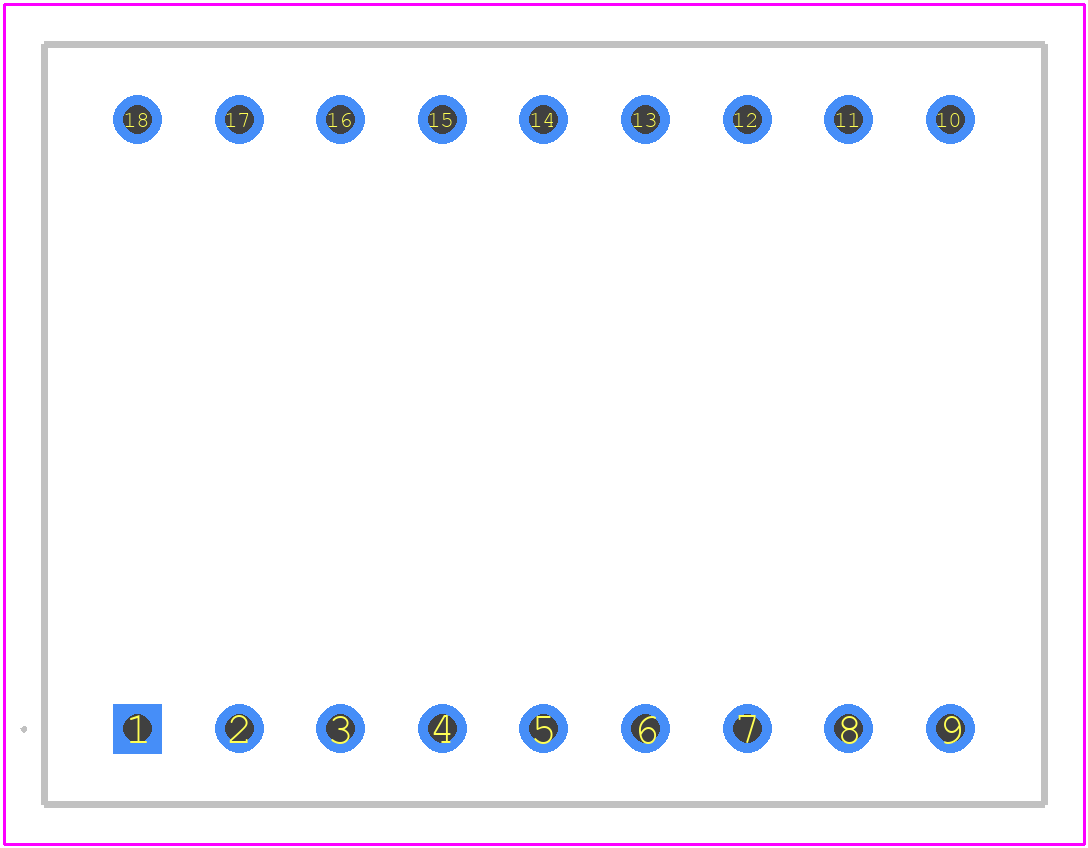

LD0565GWK - Multicomp Pro PCB footprint - Other - Other - LD0565GWK-2

3D Models

LD0565GWK - Multicomp Pro - 3D model - Other - LD0565GWK-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for LD0565GWK
Part Number LD0565GWK
Manufacturer Multicomp Pro
Pin Count 18
Part Category Display
Package Category Other
Footprint Name Other - LD0565GWK-2
Released Date Mar 6, 2026
Last Modified Date Mar 6, 2026 8:45 AM UTC
