The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the device, using a 2-3 layer PCB with a solid ground plane, and keeping the thermal traces as short and wide as possible.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, provide adequate heat sinking, and ensure good airflow around the device. Additionally, consider using a thermally conductive interface material between the device and the heat sink.
To prevent damage, handle the device by the body, avoid touching the pins, and store it in an anti-static bag or wrap it in anti-static material. Also, avoid exposing the device to moisture, extreme temperatures, or physical stress.
Yes, the LD0565SRWK is designed to withstand vibrations up to 10G. However, it's essential to ensure the device is properly secured to the PCB and the PCB is securely fastened to the system to prevent mechanical stress.
The recommended soldering conditions for the LD0565SRWK are a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that follows the IPC J-STD-020 standard.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LD0565SRWK Overview

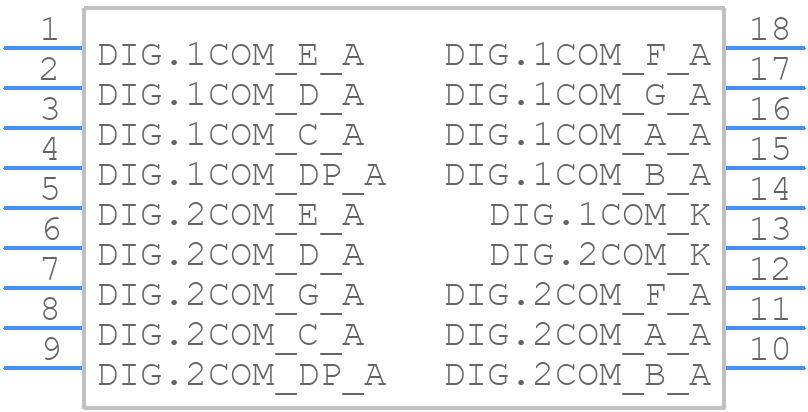

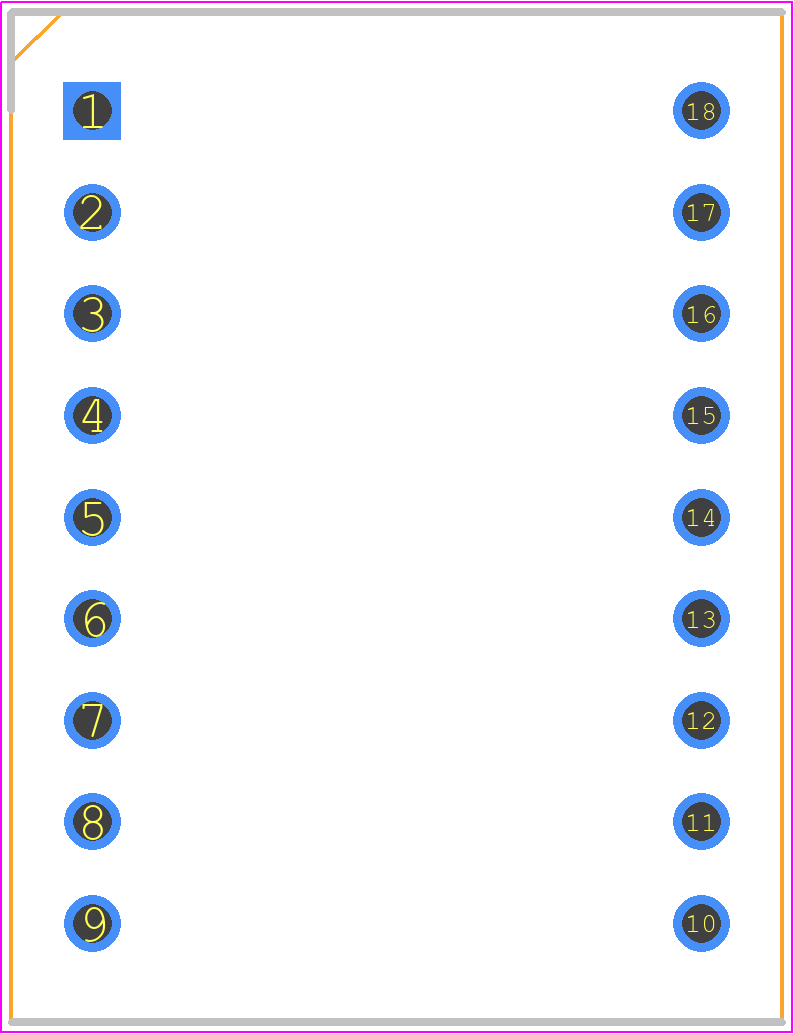

Use the download button to access the LD0565SRWK schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LD056,
or try a keyword search, such as LED Displays
Suggested Parts
If you searched for LD0565SRWK, you might also be interested in these parts:
