LD20-23B09R2 - Mornsun Power

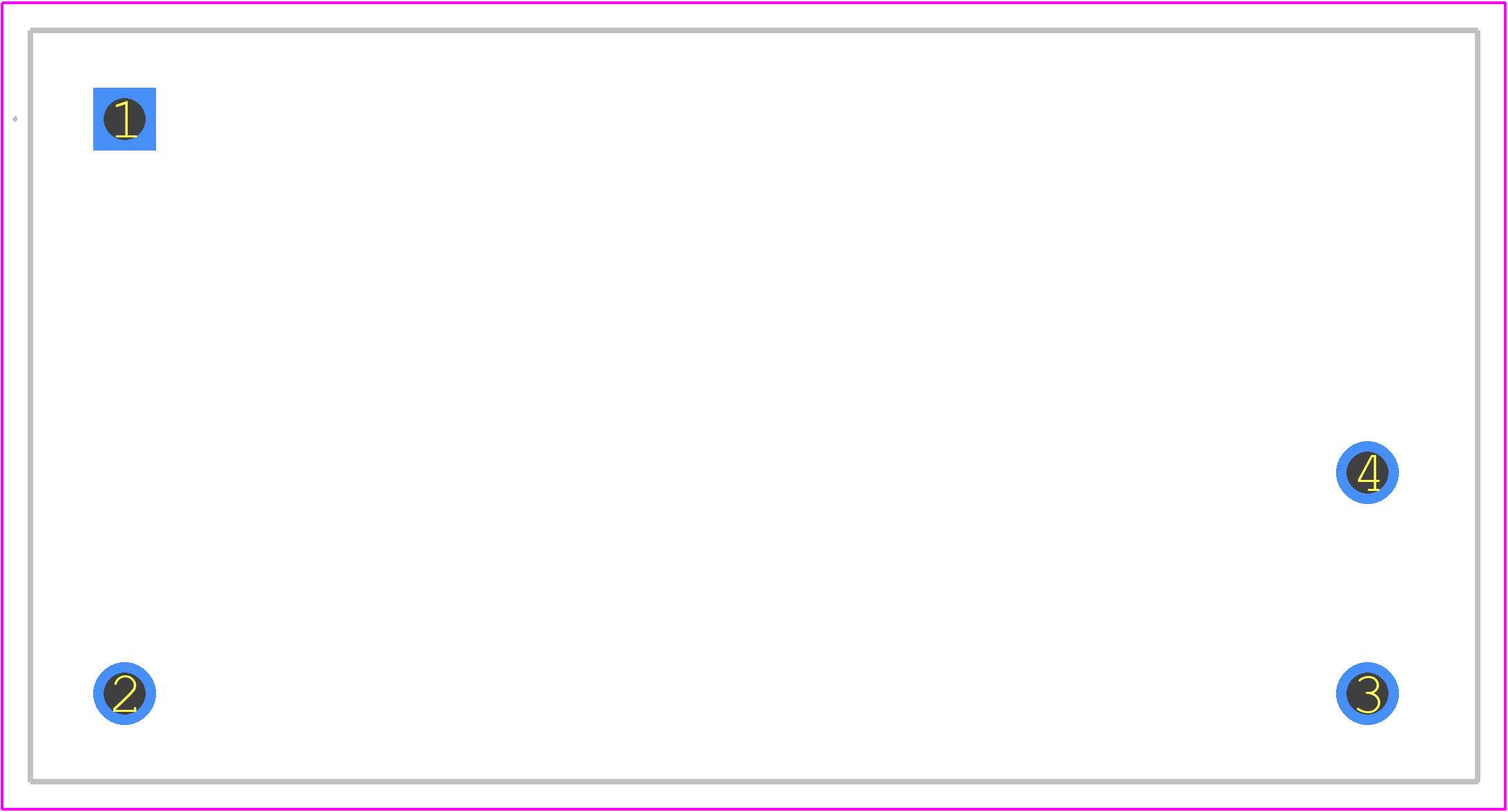

LD20-23B09R2 Details

• Manufacturer Part Number:

  LD20-23B09R2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  MORNSUN

• YTEOL:

  7.4

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CB; CE; EN; IEC; UL

• Efficiency (Main Output):

  84%

• Input Voltage-Max:

  305 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-PDMA-P4

• Length:

  52.4 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.2 A

• Output Voltage-Max:

  9.135 V

• Output Voltage-Min:

  8.865 V

• Output Voltage-Nom:

  9 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT; OVER VOLTAGE ; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.053025 Vrms

• Seated Height-Max:

  24.5 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  65 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  20 W

• Trim/Adjustable Output:

  NO

• Width:

  27.2 mm
