LD39200PUR - STMicroelectronics

Description: LDO Voltage Regulators 2 A high PSRR ultra low drop linear regulator with reverse current protection

Download LD39200PUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

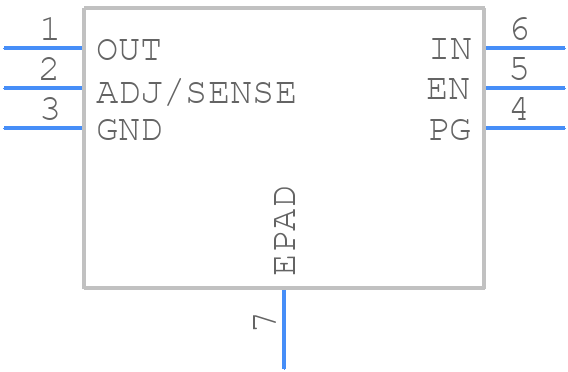

Symbol
LD39200PUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LD39200PUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN6 (3x3)
click to zoom
3D Models
LD39200PUR - STMicroelectronics - 3D model - Small Outline No-lead - DFN6 (3x3)
click to zoom

LD39200PUR Details

  • Manufacturer Part Number:

    LD39200PUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.25 V

  • Dropout Voltage1-Nom:

    0.11 V

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.2

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5.75 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.11,37

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LD39200PUR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure stable output voltage regulation, use a high-quality input capacitor (e.g., X7R or X5R) with a capacitance value of at least 10uF, and consider adding a feedforward capacitor (e.g., 100nF) to improve transient response.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the maximum input voltage.
  • Implement overcurrent protection using a fuse or a PTC (Positive Temperature Coefficient) thermistor, and consider adding a thermal shutdown circuit to prevent overheating. Also, ensure proper PCB layout and thermal management.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the output voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LD39200PUR Overview

Use the download button to access the LD39200PUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LD392, or try a keyword search, such as Linear Regulator ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
