LDA210STR - LITTELFUSE

Description: Opto coupler with a single darlington transistor output

Download LDA210STR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LDA210STR model

Email notifications will be applied after download.

Send part feedback

Symbol

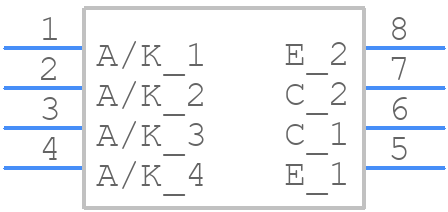

LDA210STR - LITTELFUSE - PCB symbol

PCB Footprints

LDA210STR - LITTELFUSE PCB footprint - Other - Other - 8-Pin Surface Mount

3D Models

LDA210STR - LITTELFUSE - 3D model - Other - 8-Pin Surface Mount

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDA210STR
Part Number LDA210STR
Manufacturer LITTELFUSE
Pin Count 8
Part Category Transistor
Package Category Other
Footprint Name Other - 8-Pin Surface Mount
Released Date May 19, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LDA210STR Details

Manufacturer Part Number:
LDA210STR
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
HTS Code:
8541.40.80.00
Manufacturer:
Littelfuse Inc
YTEOL:
0
Optoelectronic Device Type:
AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER

Trust Checks

Community Provided

System Verified

Community Approved

LDA210STR Overview

Use the download button to access the LDA210STR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDA21, or try a keyword search, such as Optocoupler
